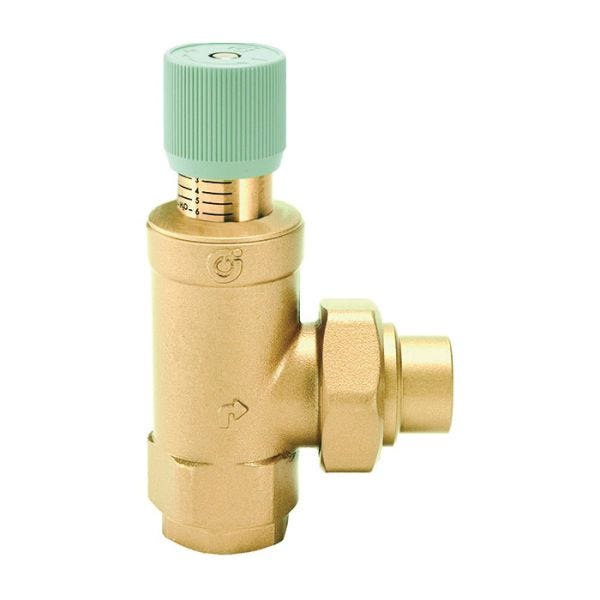

Caleffi 519502A
CALEFFI 3/4 DIFF PRESS BY-PASS
SKU
377572
Caleffi By-Pass Valve, Differential Pressure, Series: 519, 3/4 in Nominal, MNPT, 150 psi, 32 to 230 deg F, 9 gpm, Media: Water/Glycol Mixture, Brass Body, EPDM O-Ring Softgoods, 5-11/16 in
- Adjustable from 2 to 10 psi
- Brass Valve plug
| Softgoods Material | EPDM O-Ring |
|---|---|
| End Style | MNPT |
| Body Material | Brass |
| Nominal Size | 3/4 in |
| Flow Rate | 9 gpm |
| Media | Water/Glycol Mixture |
| Dimensions | 5-11/16 in |
| Type | Differential Pressure |
| Pressure Rating | 150 psi |
| Temperature Rating | 32 to 230 deg F |
| Series | 519 |
| Brand | Caleffi North America |
