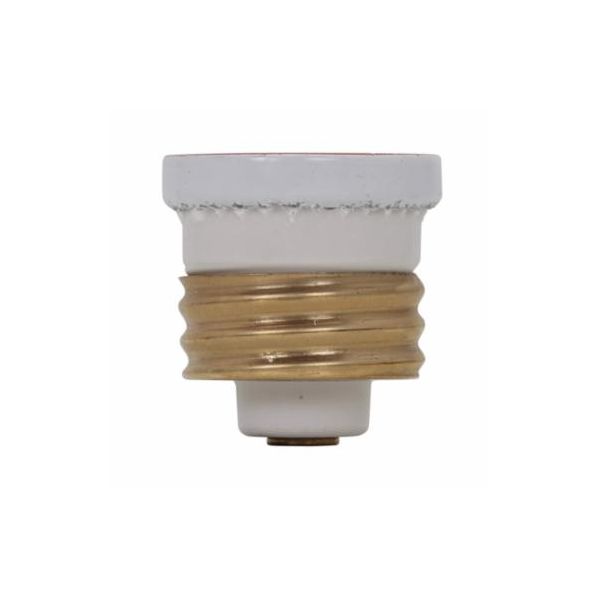

Bussmann T-20
20A SCREW IN FUSE TIME DELAY
SKU
676438
Bussmann Fusetron™ Plug Fuse, Heavy Duty Time Delay, Series: T Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 20 A, 125 VAC, 10 kAIC Interrupt, 10 kA Short Circuit Current Rating, Stud Terminal, Threaded Mount, Round Body Type, Dual Element, Plastic Body/Brass Thread
- Edison base threads into non-rejection fuse receptacles
- Heavy duty dual element construction for motor circuits
- This spring loaded design provides superior short circuit and overload protection
- Use to protect critical motor circuits or motors that cycle On/Off frequently
- The T-fuses have more time delay than the medium duty fuses in order to better protect industrial motors and critical residential circuits
| Interrupt Rating | 10 kAIC |
|---|---|
| Body Type | Round |
| Element | Dual |
| Voltage Rating | 125 VAC |
| Terminal Type | Stud |
| Short Circuit Current Rating | 10 kA |
| Type | Heavy Duty Time Delay |
| Rejection/Non-Rejection | Non-Rejection |
| Material | Plastic Body/Brass Thread |
| Indicating/Non-Indicating | Non-Indicating |
| Series | T Series |
| Mounting Type | Threaded |
| Amperage Rating | 20 A |
| Brand | Diversitech |
