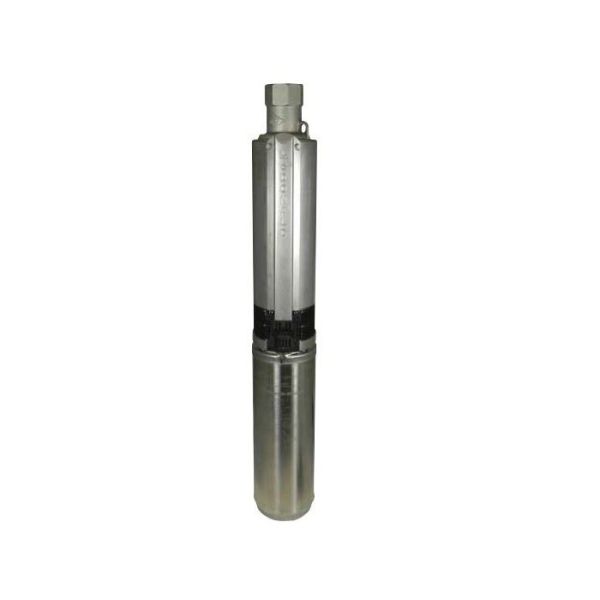

A.Y. McDonald 6622-012
11/4" COMPACT 2000 SERIES BV
SKU
905853
A.Y. McDonald Submersible Pump, Series: J Series, 5 gpm, 3 Wires, 9 Stage, 270 ft Maximum Head, 1/3 hp, 115 VAC, 60 Hz, 1 ph, 50 psi Maximum, Service Factor: 1.75, Stainless Steel, 3-3/4 in Dia
- Powered by NEMA approved stainless steel motors with built-in lightning protection
- Discharge - 300 series stainless steel, corrosion resistant, easy wrench design, built-in safety eye, threads into shell
- Discharge bearing - Rubber surrounding the stainless steel shaft provides superior wear resistance against the harshest conditions
- Diffuser - Polycarbonate durable and corrosion/abrasion resistant
- Impeller - Glass bead acetal
- Check valve - McDonald® "diamond design" check valve
- Cable guard - stainless steel cable guard protects motor leads
- Heavy stainless steel shell - Threaded at both ends for easy field service
- Stainless steel hex shaft - 7/16 in 300 series stainless steel, hex design for positive impeller drive
- 1-1/4 in FNPT discharge
- All 1/3 hp pumps are furnished with 1-1/2 hp motors
- 300 lb downward thrust
- Weighted average of the wetted surface of this no lead product contacted by consumable water contains less than one quarter of one percent (0.25%) lead
| Material | Stainless Steel |
|---|---|
| Number of Stages | 9 |
| Phase | 1 ph |
| Number of Wires | 3 |
| Dimensions | 3-3/4 in Dia |
| Voltage Rating | 115 VAC |
| Flow Rate | 5 gpm |
| Power Rating | 1/3 hp |
| Frequency Rating | 60 Hz |
| Series | J Series |
| Maximum Head | 270 ft |
| Maximum Pressure | 50 psi |
| Service Factor | 1.75 |
| Brand | A.Y. McDonald |
| Size | 1-1/4" |
