NSI A530MW
A530MW 30MIN WH SPRING WND TMR
SKU
711933

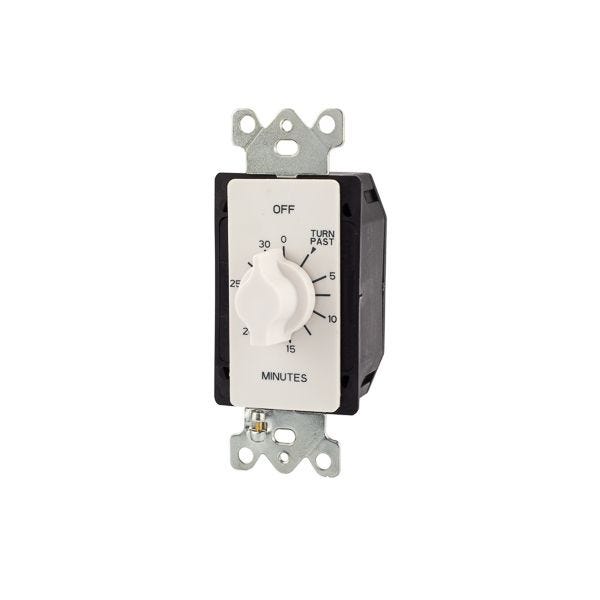

NSI Tork® Spring Wound Timer, Auto Off Interval Mechanical, Series: A Series, Operation Mode: 30 min, 125/250/277 VAC, 20/10 A, 1 hp, 2 hp, 1 Pole, SPDT Contact Form, 30 min Time Setting, 32 to 122 deg F, Wall Mounting, 5 in H x 3 in W Dimensions
- Twist knob for time on setting, Time on lengths from 15 min to 12 hr vary by model
- No neutral required, great for retrofit use as single or in multi-gang box with no de-rating
- Interval timer
- Single phase
- Contact initiation
- Single gang wall plate enclosure
- 7 A at 125 VAC (tungsten), 20 A at 120 VAC/10 A at 250 VAC/10 A at 277 VAC (resistive), 20 A at 120 VAC/10 A at 250 VAC/10 A at 277 VAC (inductive)
- 1 hp at 125 VAC/2 hp at 250 VAC
- 50/60 Hz frequency
- No hold in wall time switch
- White color
- Without wallplate
| Contact Form | SPDT |
|---|---|
| Time Setting | 30 min |
| Dimensions | 5 in H x 3 in W |
| Horsepower | 1 hp, 2 hp hp |
| Voltage Rating | 125/250/277 VAC |
| Series | A Series |
| Temperature Rating | 32 to 122 deg F |
| Type | Auto Off Interval Mechanical |
| Number of Poles | 1 |
| Amperage Rating | 20/10 A |
| Mounting Type | Wall |
| Operation Mode | 30 min |
| Brand | NSI Ind |
| Amperage | 20 Amp |
| Type | Timers |
| Color | white |
