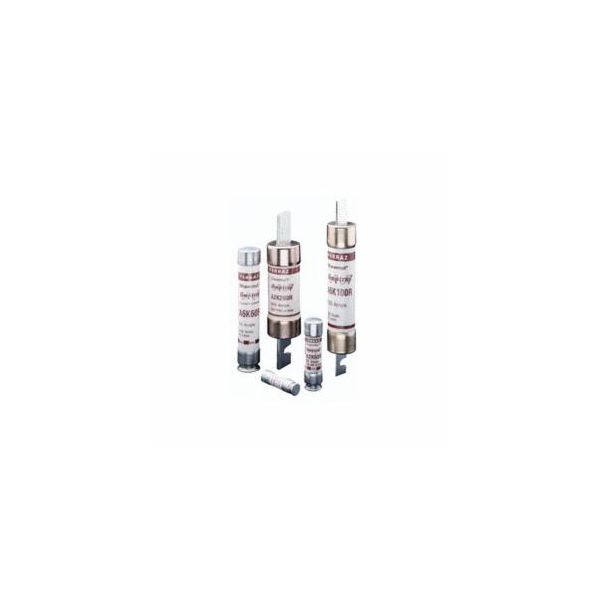

Mersen A6K20R
20A 600V FUSE TYPE RK1
SKU
706684
Mersen Amp-Trap 2000® SmartSpot® Fast Acting Fuse, Current Limiting Low Voltage, Series: A6K-R, Rejection, 20 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class: RK1, Ferrule Terminal, Clip Mount, Cylindrical Body Type, Polyester, 13/16 in Dia x 5 in L Body Size
- Rejection style design prevents replacement by other fuse classes
- Fiberglas body provides dimensional stability in harsh industrial environments
- Easy-to-read imprint label for quick recognition and replacement
- High degree of current limitation for low peak let-thru current
- Tin-plated copper contact
| Class | RK1 |
|---|---|
| Body Size | 13/16 in Dia x 5 in L |
| Material | Polyester |
| Series | A6K-R |
| Voltage Rating | 600 VAC/300 VDC |
| Mounting Type | Clip |
| Terminal Type | Ferrule |
| Type | Current Limiting Low Voltage |
| Body Type | Cylindrical |
| Amperage Rating | 20 A |
| Rejection/Non-Rejection | Rejection |
| Interrupt Rating | 200/20 kA |
| Brand | Merson Fuses |
| Class | RK-1 |
