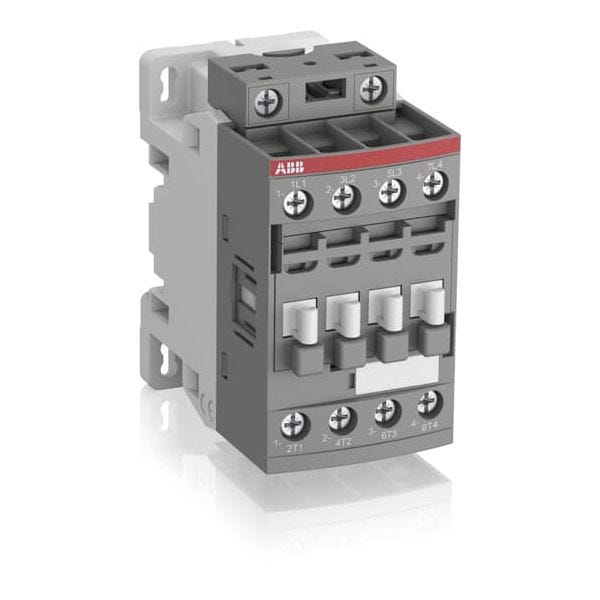

ABB AF16-40-00-14

ABB Line Contactor, Non-Reversing, Series: AF Series, 250 to 500 VAC/VDC Coil, 30 A Maximum Load Current, 5 hp, 10 hp, 15 hp, 1-1/2 hp, 3 hp Coil, 4 Pole, 4/7.5/9 kW Wattage, 4NO Contact Configuration, 30 A at 690 V Contact, AF16 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 45 mm W x 77 mm D x 86 mm H Dimensions

• No auxiliary contacts
• Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
• Can manage large control voltage variations
• Reduced panel energy consumption
• Very distinct closing and opening
• Built-in surge suppression
• Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
• 30 A at 690 V, 26 A at 690 V rated operational current AC-1
• 18 A at 220/230/240 V, 18 A at 380/400 V, 18 A at 415 V, 18 A at 440 V, 15 A at 500 V, 10.5 A at 690 V rated operational current AC-3
• 5 hp at 220 to 240 VAC 3 ph, 10 hp at 440 to 480 VAC 3 ph, 15 hp at 550 to 600 VAC 3 ph, 1-1/2 hp at 120 VAC 1 ph, 5 hp at 200 to 208 VAC 3 ph, 3 hp at 240 VAC 1 ph
• 4 kW at 220/230/240 V, 7.5 kW at 380/400 V, 9 kW at 415 V, 9 kW at 440 V, 9 kW at 500 V, 9 kW at 690 V
