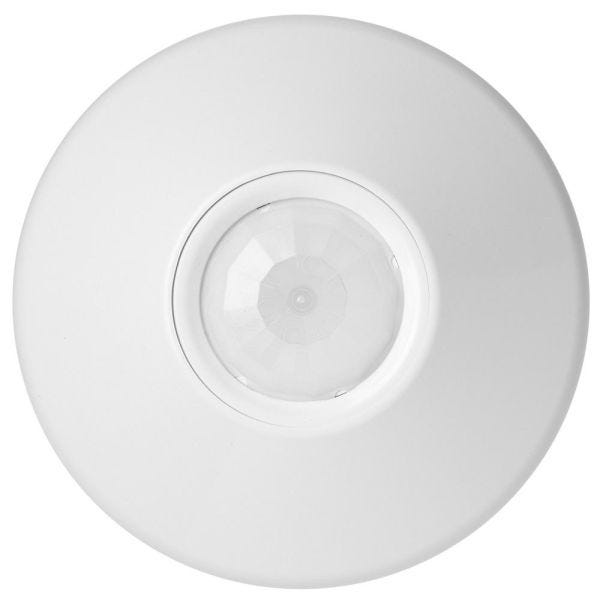

Sensor Switch CM 10
CEILING MOUNT OCCUPANCY SENSOR
SKU
766750
Sensor Switch™, CM 10, Occupancy Sensor, Low Voltage, Series: CM Series, 12 to 24 VAC/VDC, 4 mA, Infrared Sensor, 360 deg Coverage, 360 deg Viewing, 30 sec to 20 min Time Delay, Octagon Box Mounting, -10 to 71 deg C, Plastic, White, 4.55 in Dia x 1.55 in D Dimensions
- Communicates with other sensors
- Detection range improves when walking across beams compared to into beams
- Large motion 360 deg coverage pattern
- Push button programmable, adjustable time delays and multiple operating modes
- 100 hr lamp burn-in timer mode
- Convenient test mode
- Green LED indicator
- 3.5 in octagon box
- Standard temperature range and humidity
- 40 ballasts at 0.5 mA dimming load
- 1 A at 24 VAC/VDC relay rating
- PP20 recommended power pack
- No field calibration or sensitivity adjustments required
- Best choice for large motion detection
- PIR occupancy detection
- The Sensor Switch CM 10 large motion ceiling mount sensor combines a low voltage sensor into a low profile design, making it perfect to mount directly to a ceiling tile or metallic grid
| Series | CM Series |
|---|---|
| Temperature Rating | -10 to 71 deg C |
| Type | Low Voltage |
| Mounting Type | Octagon Box |
| Material | Plastic |
| Viewing Angle | 360 deg |
| Sensor Type | Infrared |
| Dimensions | 4.55 in Dia x 1.55 in D |
| Coverage | 360 deg |
| Voltage Rating | 12 to 24 VAC/VDC |
| Amperage Rating | 4 mA |
| Color | White |
| Time Delay | 30 sec to 20 min |
| Brand | Lithonia Lighting |
