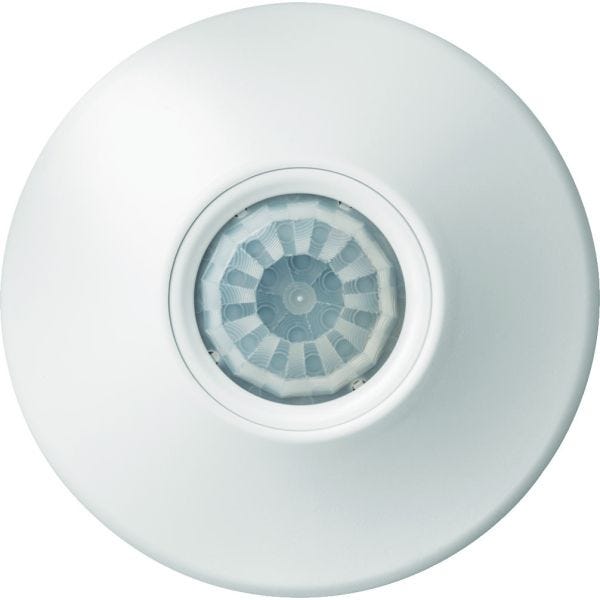

Sensor Switch CM 9

CEILING MOUNT WHITE SENSOR
SKU
721296
The product cannot be delivered by Truck Shipping

Sensor Switch™, CM 9, Ceiling Mount Occupancy Sensor, Low Voltage, Series: CM Series, 12 to 24 VAC/VDC, 4 mA, Passive Infrared Sensor, 12 ft Coverage, 360 deg Viewing, 30 s to 30 min Time Delay, 902 MHz Response, Wired Connection, Ceiling Mounting, 14 to 160 deg F, Plastic, Matte White, 4.55 in Dia x 1.55 in D Dimensions

  • Passive Infrared (PIR) occupancy detection
  • No field calibration or sensitivity, adjustments required
  • Pushbuttons programmable
  • Pushbutton programmable, adjustable time delays and multiple operating modes
  • Convenient test mode
  • Green LED status indicator
  • Small motion 360 deg coverage pattern
  • Suitable for indoor environments
  • Time delay feature can be set for 30 seconds to 20 minutes
  • 100-hour lamp burn-in timer mode
  • Energy Management Equipment, UL916 (E167435), RoHS compliant
  • 360 degree coverage
  • 12 ft radial coverage when mounted to standard 9 ft ceiling; 8-15 ft mounting heights provide 10-20 ft radial coverage
  • The Sensor Switch CM 9 small motion ceiling mount sensor combines a low voltage sensor into a low profile design, making it perfect to mount directly to a ceiling tile or metallic grid
  • Best choice for small motion detection
  • Up to 14 sensors per power pack
More Information
Series CM Series
Response Frequency 902 MHz
Temperature Rating 14 to 160 deg F
Type Low Voltage
Mounting Type Ceiling
Connection Type Wired
Material Plastic
Viewing Angle 360 deg
Sensor Type Passive Infrared
Dimensions 4.55 in Dia x 1.55 in D
Coverage 12 ft
Voltage Rating 12 to 24 VAC/VDC
Amperage Rating 4 mA
Color Matte White
Time Delay 30 s to 30 min
Brand Lithonia Lighting
