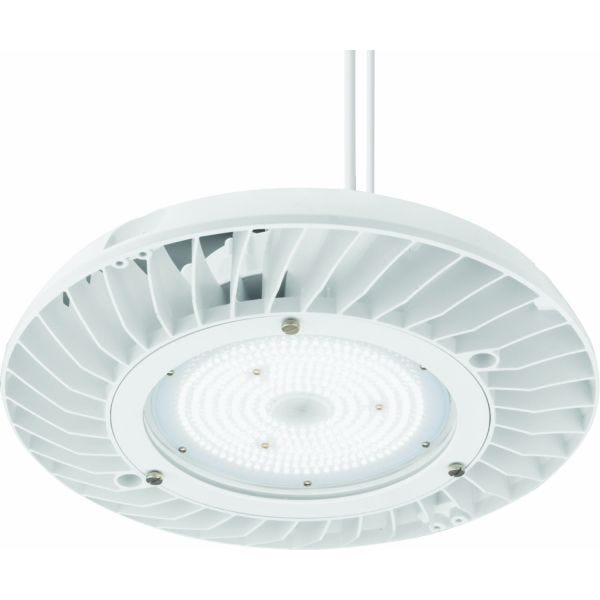

Lithonia Lighting JEBL 30L 50K 80CRI WH
50K LED ROUND HIGH BAY
SKU
885967
Lithonia Lighting®, JEBL 30L 50K 80CRI WH, High Bay Fixture, Economical Round, Series: JEBL, 120 to 277 VAC, 218 W Fixture, LED Lamp, 218 W Lamp, >54000 hr Average Life, White Light, 5000 K Color Temperature, 80 CRI, 0 to 10 VDC Dimmable Ballast, Clear Tempered Glass Lens, 30000 Lumens, IP65 Enclosure, Eye Bolt Mounting, Die Cast Aluminum Housing Material, 15-3/4 in Dia x 5-3/16 in H Dimensions
- Technology, JEBL features a white die-cast aluminum housing along with a removable die-cast aluminum driver housing
- Powder coat corrosion resistant finish provides 500 hr salt fog rating
- Energy Savings, Easily replace 4-lamp T5HO, 6-lamp T8 with LEDs that save energy and reduce total cost of ownership
- The removable quick disconnect driver housing that allows for easy field replacement of the LED driver, eliminating the need to replace the entire fixture
- High efficiency
- General distribution
- 0-10V dimming standard for a dimming range of 100 to 10 percent
- CSA listed to US and Canadian Safety Standards; Wet location listed
- Input voltage is MVOLT (120-277V) and HVOLT (347-480V)
- Install 1/4 in NPT eye bolt with 1/2 in thick loop and 6 ft cord with dimming lead provided for easy installation and optional surface mount brackets
- Field-installable LED emergency driver sold separately
| Light Color | White |
|---|---|
| Ballast Type | 0 to 10 VDC Dimmable |
| Dimensions | 15-3/4 in Dia x 5-3/16 in H |
| Lumens | 30000 Lumens |
| Color Rendering Index (CRI) | 80 |
| Average Life | >54000 hr |
| Fixture Wattage | 218 W |
| Housing Finish | White |
| Lens Type | Clear Tempered Glass |
| Mounting Type | Eye Bolt |
| Enclosure Type | IP65 |
| Lamp Wattage | 218 W |
| Color Temperature | 5000 K |
| Housing Material | Die Cast Aluminum |
| Lamp Type | LED |
| Type | Economical Round |
| Voltage Rating | 120 to 277 VAC |
| Series | JEBL |
| Brand | Lithonia Lighting |
