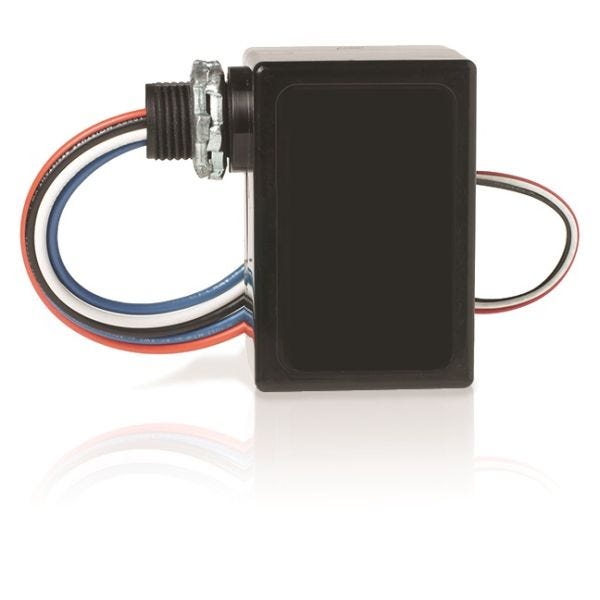

Sensor Switch PP20
POWER SUPPLY FOR MOTION SENSOR
SKU
725496
Sensor Switch™, PP20, Power Pack, Plenum Rated, 1 hp Power, 120/277 VAC Input, 15 VDC Output, 150 mA, 1 hp Relay, 14 to 160 deg F Operating, 20 to 75% Non-Condensing Humidity, 2.4 in Width, 1.88 in Depth, 3.9 in Height, Plastic, Black
- Self-contained relay switches line voltage load
- The PP20 power pack switches the lighting load on and off utilizing our patented relay circuit protection
- Switches line voltage loads; transforms 120, 240 or 277 V into Class II 15 VDC to power the remote sensors
- Can be mounted directly through a 1/2 in knockout in a junction box or inside an adjacent box for specific local code requirements
- Can power up to 14 sensors
- Utilizes a patented relay contact protection
| Input Voltage | 120/277 VAC |
|---|---|
| Width | 2.4 in |
| Humidity | 20 to 75% Non-Condensing |
| Type | Plenum Rated |
| Operating Temperature | 14 to 160 deg F |
| Material | Plastic |
| Power Rating | 1 hp |
| Output Voltage | 15 VDC |
| Relay Rating | 1 hp |
| Amperage Rating | 150 mA |
| Color | Black |
| Depth | 1.88 in |
| Height | 3.9 in |
| Brand | Lithonia Lighting |
