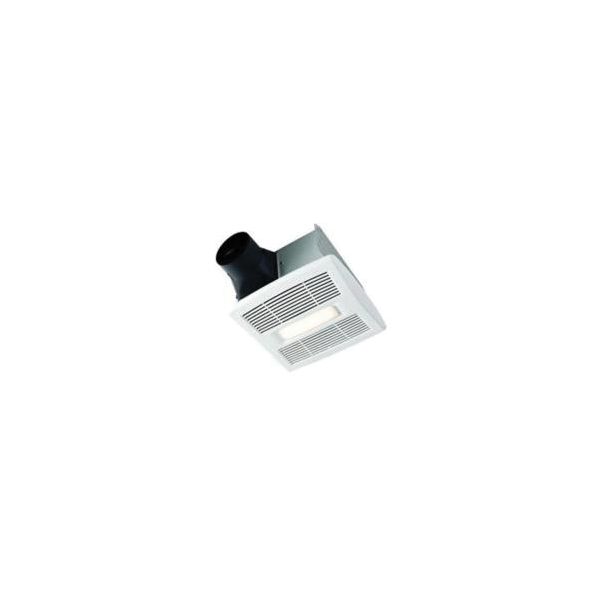

Broan-NuTone AE110SL

110CFM ENERGY STAR SENSING FAN
SKU
777761
The product cannot be delivered by Truck Shipping

Broan® Humidity Sensing Fan/Light, Series: InVent™, 110 cfm, 4 in Duct Dia, 120 VAC, 0.5 A, 60 Hz, 23.4 W, 0.9 Sones, 11-3/4 in Grille Length, 12-1/2 in Grille Width, Polymer Grille, 9-1/4 in Housing Length, 10 in Housing Width, 5-3/4 in Housing Height, Galvanized Steel Housing, Ceiling Mount, Humidity Sensing: Yes, Motion Sensing: No, White, Domestic

  • Humidity control automatically turns fans ON when a rapid to moderate (user adjustable) increase of humidity is sensed or when humidity rises above the user-adjustable set-point (50 to 80% RH)
  • Single speed 110 cfm reduces humidity to quickly eliminate fogged mirrors and manage moisture in bathrooms up to 105 sq ft, so your vision will always be clear and your surroundings will always be comfortable
  • Retrofit installations can be done entirely from the room-side - no attic access required, this means a faster, easier installation
  • With our TrueSeal™ damper technology, InVent™ fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
  • EzDuct™ connector can be installed room-side with no attic access required, fan housing connection have never been easier
  • UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit
  • A 1.0 sone rating provides quality ventilation at comfortable sound levels
  • 23.4 W Fixture
  • LED lamp
  • 25000 hr average life
  • 3000 K color temperature
More Information
Housing Material Galvanized Steel
Housing Height 5-3/4 in
Frequency Rating 60 Hz
Domestic/Import Domestic
Sones 0.9
Series InVent™
Flow Rate 110 cfm
Grille Material Polymer
Grille Length 11-3/4 in
Voltage Rating 120 VAC
Duct Diameter 4 in
Humidity Sensing Yes
Wattage Consumption 23.4 W
Current/Amps 0.5 A
Color White
Housing Width 10 in
Housing Length 9-1/4 in
Motion Sensing No
Mounting Type Ceiling
Grille Width 12-1/2 in
Brand Broan-NuTone
