Bell & Gossett 103257LF
LF NBF-8S/LW 1/40HP BRZ 1/2 SWT
SKU
218619

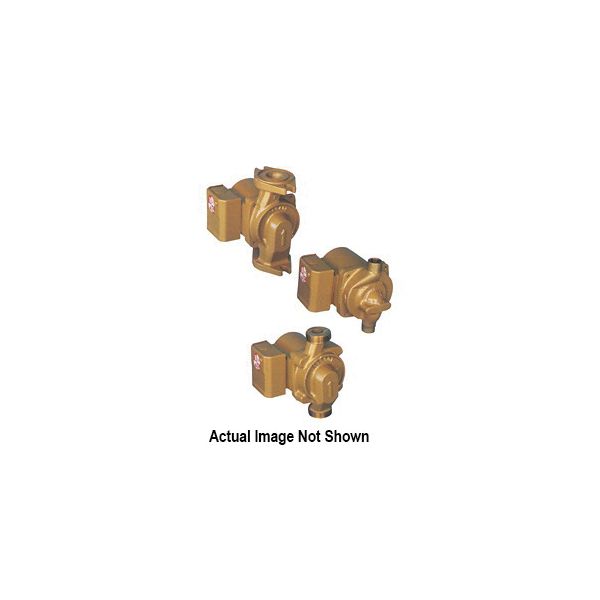

Bell & Gossett Wet Rotor Circulator Pump, Series: NBF™, 7 gpm, 8 ft Maximum Head, 39 W, 115 VAC, 0.38 A, 60 Hz, 1 ph, 150 psi Maximum, 2800 rpm Motor, In-Line Mount, 230 deg F, 4-7/8 in W x 5-7/32 in D x 5 in H
- 100 percent lead-free bronze pump body NBF, Noryl impeller, ceramic shaft and double-sintered carbon bearings
- Pumps shall be of the horizontal system lubricated type specifically designed and guaranteed for quiet operation
- Pumps shall have a ceramic shaft supported by carbon bearings
- Pump body shall be lead-free bronze for NBF circulators
- Motor stator to be isolated from circulating fluid through use of stainless steel can
- Motors shall be non-overloading at any point on the pump curve
- 1/2 in C
- Construction: Lead free bronze pump body, Noryl™ impeller, ceramic shaft, carbon bearings
| Amperage Rating | 0.38 A |
|---|---|
| Frequency Rating | 60 Hz |
| Flow Rate | 7 gpm |
| Mounting Type | In-Line |
| Series | NBF™ |
| Temperature Rating | 230 deg F |
| Phase | 1 ph |
| Dimensions | 4-7/8 in W x 5-7/32 in D x 5 in H |
| Voltage Rating | 115 VAC |
| Maximum Pressure | 150 psi |
| Power Rating | 39 W |
| Maximum Head | 8 ft |
| Motor Speed | 2800 rpm |
| Brand | Bell & Gossett |
