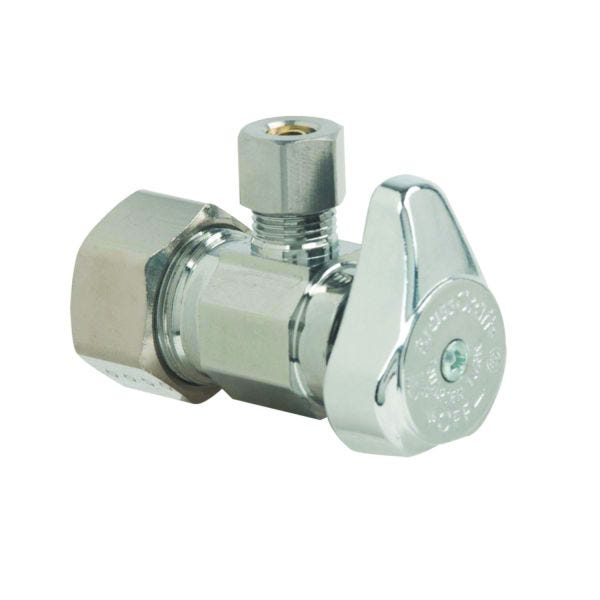

BrassCraft Manufacturing G2CR09X C
5/8OD x 1/4OD ANGLE STOP
SKU
729720
BrassCraft® Angle Stop, 1/4 Turn, Series: G2™, 1/2 x 1/4 in Nominal, Compression End Style, 125 psi Pressure, Media: Water, Brass Body, C36000 Brass Trim, Santoprene Stem Barrel/Rubber O-Ring Softgoods, 40 to 140 deg F, 1.02 x 2.16 in Dimension, Polished Chrome, Domestic
- Positive 1/4 turn shut-off
- Full flow operation with no waterway obstructions
- Machined one-piece brass body provides strength, durability and long-lasting performance
- Not intended for recirculating water systems that produce continuous use temperatures above 115 deg F
- Installation ready with pre-assembled tube insert
- For use with Copper, PEX and CPVC
| Series | G2™ |
|---|---|
| Type | 1/4 Turn |
| Temperature Rating | 40 to 140 deg F |
| Domestic/Import | Domestic |
| Pressure Rating | 125 psi |
| Dimensions | 1.02 x 2.16 in |
| Body Material | Brass |
| End Style | Compression |
| Media | Water |
| Trim Material | C36000 Brass |
| Softgoods Material | Santoprene Stem Barrel/Rubber O-Ring |
| Finish | Polished Chrome |
| Nominal Size | 1/2 x 1/4 in |
| Brand | BrassCraft |
