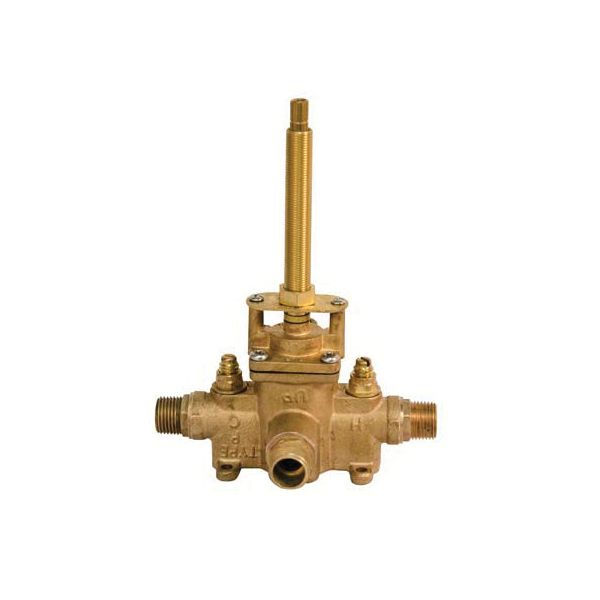

Newport Brass 1-685
*NP VALVE W/DIVERTER 4 PORT
SKU
666827
Newport Brass® Balance Pressure Valve, Universal, 1/2 in C Inlet Connection, 4-1/2 in NPT Outlet, 50 psi, 150 deg F, 5.8 gpm, For Use With: Tub and Shower Installation, Solid Brass Body, 5-15/16 in W x 6-11/16 in D x 7-7/8 in H
- Universal 1/2 in NPT and direct sweat connections for installation flexibility
- Provides anti-scald protection and temperature regulation
- Pressure-balancing technology maintains water temperature within +/- 2 degrees Fahrenheit
- High-temperature safety stop ensures water temperature stays below maximum setting
- Integral hot and cold inlet stops ensure easy cartridge access
- Integral pull-style diverter with automatic reset
- 1-1/16 in functional depth (center-back) enables back-to-back installation
- 4 port with service stops
| Outlet Connection | 4-1/2 in NPT |
|---|---|
| Pressure Rating | 50 psi |
| Body Material | Solid Brass |
| Type | Universal |
| Flow Rate | 5.8 gpm |
| Temperature Rating | 150 deg F |
| Dimensions | 5-15/16 in W x 6-11/16 in D x 7-7/8 in H |
| Inlet Connection | 1/2 in C |
| Suitable For Use With | Tub and Shower Installation |
| Brand | Brasstech Inc. |
