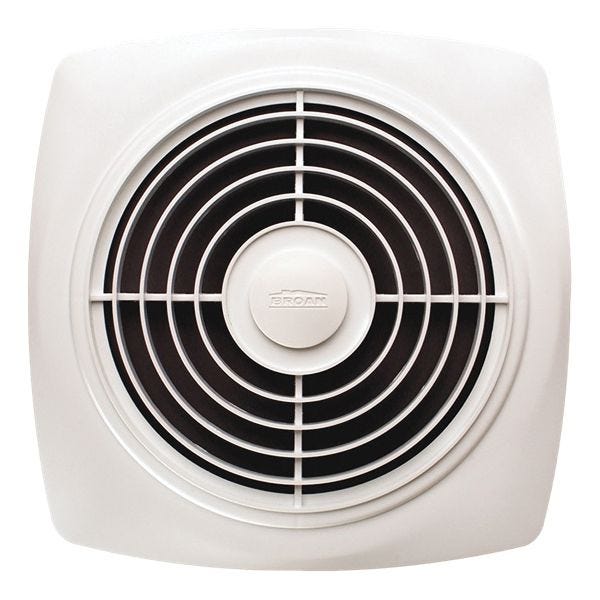

Broan 505
180CFM 8" VERT DISCHRG FAN 6.5
SKU
901327
Broan® Utility Ventilation Fan, Vertical Discharge, 180 cfm, 8 in Duct Dia, 120 VAC, 1.5 A, 60 Hz, 11-1/2 in Grille Length, 11-1/2 in Grille Width, Polymer Grille, 8-1/4 in Housing Length, 8-1/4 in Housing Width, 7 in Housing Height, Steel Housing, Ceiling Mount, No, White, Import
- Efficient, high performance for ceiling installations
- Contemporary styling for modern homes
- White polymeric grilles can be painted to match any decor
- Permanently lubricated, thermally protected, plug-in motor
- 25 ga steel housing finished with rugged electrically bonded epoxy paint
- Specially designed fiberglass reinforced fan blades
- Motor assembly offers fast, easy "twist-lock" installation
- Adjustable mounting brackets with keyhole slots span 14 to 24 in
- Installs easily between ceiling joists
- Eliminate humidity from laundry rooms, tobacco smoke from recreation rooms and workshops or cooking fumes from kitchens with Broan®’s high efficiency utility ventilators
- 180 cfm at 0.1 in SP
| Housing Material | Steel |
|---|---|
| Type | Vertical Discharge |
| Housing Height | 7 in |
| Frequency Rating | 60 Hz |
| Domestic/Import | Import |
| Flow Rate | 180 cfm |
| Grille Material | Polymer |
| Grille Length | 11-1/2 in |
| Amperage Rating | 1.5 A |
| Voltage Rating | 120 VAC |
| Duct Diameter | 8 in |
| Humidity Sensing | No |
| Color | White |
| Housing Width | 8-1/4 in |
| Housing Length | 8-1/4 in |
| Mounting Type | Ceiling |
| Grille Width | 11-1/2 in |
| Brand | Broan-NuTone |
