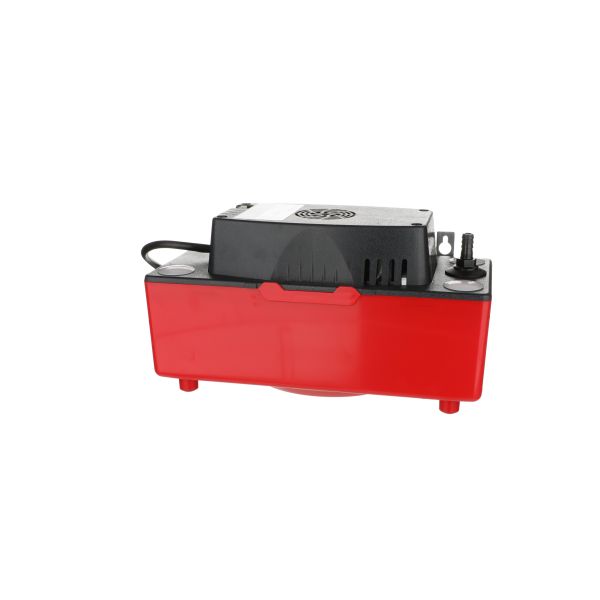

Diversitech CP-22
COND PUMP 22' W/SFTY AND LED
SKU
354801
Diversitech Condensate Pump, 1.6 gpm Flow Rate, 4.4 in Inlet, 1.9 A 120 VAC 60 Hz Electrical Rating, 1/2 gal Reservoir, 160 deg F, 11.8 in L x 5.9 in W x 6.7 in H in
- Shatterproof stainless steel hang tabs have hole-and-slot design for easy mounting, tabs are located on convenient 8 in centers
- Fled, yellow and green indicator lights readily show the pump status, green for power applied, yellow for pump running and red for high level alarm
- Includes two 1/4 in quick connect terminals to the built-in overflow switch allowing installer flexibility to connect air-handler shut-down
- Switch features SPDT isolated contacts ready for connection to building automation systems
- Includes 60 in lead kit to connect the overflow safety switch
- Informative, full color packaging with convenient pop-in handle for easy handling
- Rubber feet dampen vibration which reduces noise
- An elastomeric motor mounting gasket dampens vibration
- Removable duckbill check valve resists corrosion and wear and is self-cleaning, replacement part number is CP-CV
- 22 ft H maximum lift
- USA 3-prong molded plug
| Reservoir Capacity | 1/2 gal |
|---|---|
| Flow Rate | 1.6 gpm |
| Temperature Rating | 160 deg F |
| Electrical Ratings | 1.9 A 120 VAC 60 Hz |
| Dimensions | 11.8 in L x 5.9 in W x 6.7 in H in |
| Inlet Size | 4.4 in |
| Brand | Diversitech |
