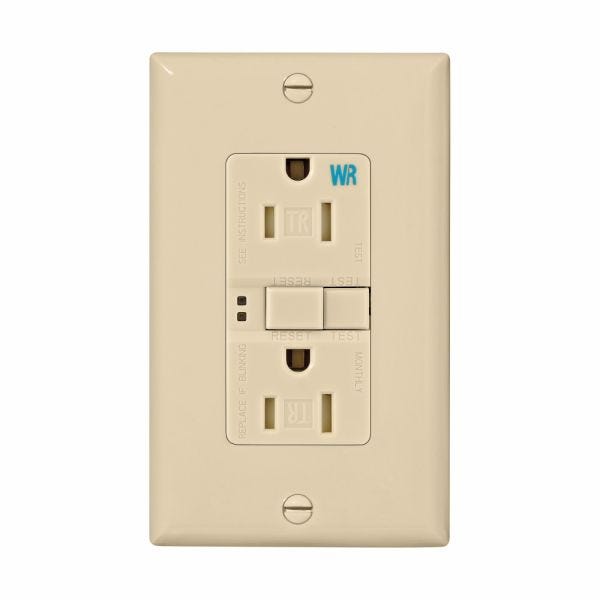

EATON TWRSGF15V
GFCI TWR Self Test Duplex 15A 125V
SKU
734173
EATON Wiring Devices GFCI Receptacle, Duplex Self-Test Tamper Weather-Resistant, 125 VAC, 15 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Specification Grade, -31 to 150.8 deg F, Back/Side Wire Terminal, Brass/Polycarbonate, Ivory, 2.054 in L x 2.853 in W x 3.195 in H Dimensions
- Visual indicator lights give quick notification of a tripped or end of life condition
- Automatically self tests periodically to ensure GFCI protection
- Rugged construction provides unsurpassed chemical and impact-resistant
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Ground termination with back wire clamp provides secure wiring and reduces installation time
- Line side terminals are backed out and staked for fast installation
- Horizontal test/reset button alignment provides larger unobstructed area
| Dimensions | 2.054 in L x 2.853 in W x 3.195 in H |
|---|---|
| Amperage Rating | 15 A |
| Color | Ivory |
| Grade | Specification |
| Frequency Rating | 60 Hz |
| Voltage Rating | 125 VAC |
| Number of Wires | 3 |
| Material | Brass/Polycarbonate |
| Temperature Rating | -31 to 150.8 deg F |
| Number of Poles | 2 |
| Type | Duplex Self-Test Tamper Weather-Resistant |
| NEMA Rating | NEMA 5-15R |
| Terminal Type | Back/Side Wire |
| Brand | Eaton |
| Color | Ivory |
| Voltage | 125V |
| Type | GFCI |
| Amperage | 15A |
| Number | Duplex |
