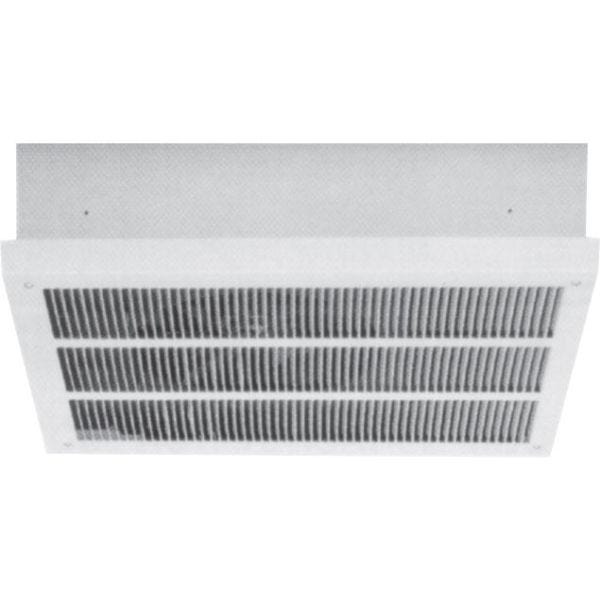

QMARK EFF4004
208/240V 3000/4000W CEIL HTR
SKU
860615
QMARK® Fan-Forced Heater, 1-Phase Heavy Duty, Series: EFF, 208 to 240 V, 14.4 A, 1.5 to 4 kW Power, 150 cfm Flow Rate, 40 to 90 deg F, Ceiling Mounting, 20 ga Steel, Navajo White, Galvanized, 19-1/8 in L x 15-3/4 in W Dimensions
- Accommodates pneumatic/electric or low voltage controls commonly used with BMS systems
- Built-in power on/off switch
- When using wall thermostat, separate thermostat wiring is required
- Automatic fan delay eliminates cold drafts on start-up and discharges residual heat from the heater body during shut down
- Multiple mounting options recessed, surface or T-Bar
- Heavy duty 14 ga louvered front cover grille with tamper-resistant screws
| Amperage Rating | 14.4 A |
|---|---|
| Voltage Rating | 208 to 240 V |
| Temperature Rating | 40 to 90 deg F |
| Color | Navajo White |
| Power Rating | 1.5 to 4 kW |
| Temperature Rating | 40 to 90 deg F |
| Material | 20 ga Steel |
| Mounting Type | Ceiling |
| Amperage Rating | 14.4 A |
| Series | EFF |
| Voltage Rating | 208 to 240 V |
| Type | 1-Phase Heavy Duty |
| Finish | Galvanized |
| Flow Rate | 150 cfm |
| Dimensions | 19-1/8 in L x 15-3/4 in W |
| Material | 20 ga Steel |
| Flow Rate | 150 cfm |
| Type | 1-Phase Heavy Duty |
| Series | EFF |
| Dimensions | 19-1/8 in L x 15-3/4 in W |
| Finish | Galvanized |
| Mounting Type | Ceiling |
| Power Rating | 1.5 to 4 kW |
| Color | Navajo White |
| Brand | Marley Engineering |
