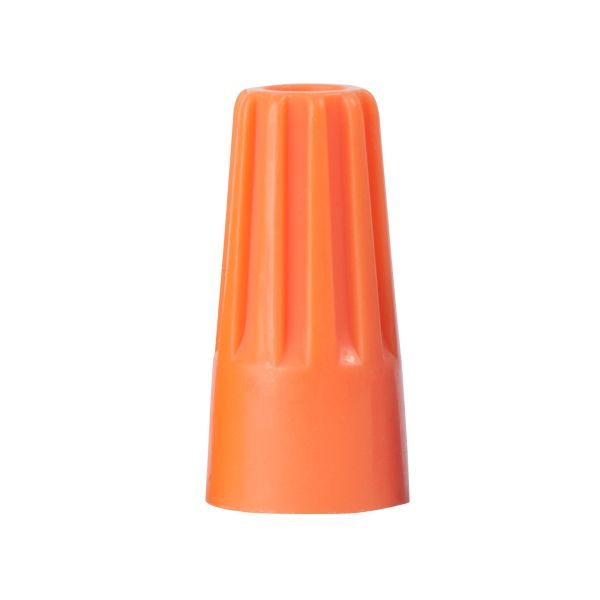

Gardner Bender 13-003

Gardner Bender, 13-003, Twist-On Wire Connector, Threaded, Series: GB-3, Positive Grip Shell Style, Square Spring, Aluminum/Copper Wire, 22 to 14 AWG Wire, 300/600 VAC, Specifications: 13/64 in Top Dia, 105 deg C, Polypropylene Shell/Thermoplastic, Orange, Zinc Plated, 0.34375 in ID x 0.44 in OD x 0.84 in L Dimensions

• Industry standard twist-on connector with top quality, performance and durability
• Tight, square-wire spring makes quick, secure connections for positive continuity
• (5) 20 AWG - (5) 20 AWG wire combinations
• 500/Bag
• Designed to require fewer turns to reach required torque and meet or exceed UL pull out and dielectric test requirements
• Square wire zinc plated spring instantly adjusts to the shape and size of the splice
• Flame-retardant properties resist heat distortion up to 105 deg C/221 deg F
• High dielectric shell features deep skirt design to prevent exposure of bare wire
• Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
• Copper to copper connections only
• Tough, thermoplastic shell shields against environmental extremes
• Inner spring is zinc plated to resist corrosion
• Connectors manufactured with high temperature rated plastic and inner spring with zinc plated, square profile steel wire
• Resists chemical action from hydrocarbons, diluted acid or alkaline solutions
• Color-coded for easy size selection
