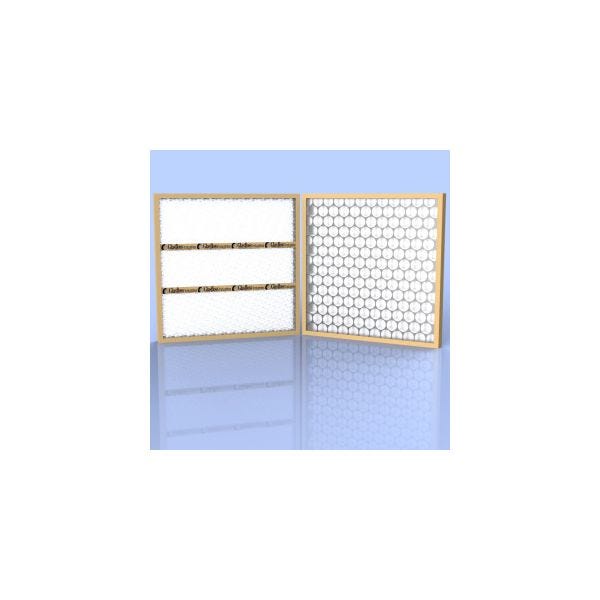

Glasfloss GDS24301
FIBERGLASS FILTER 24X30X1
SKU
622008
Glasfloss® Disposable Panel Filter, Series: GDS, 24 in Width, 1 in Depth, 30 in Height, MERV: 1 to 5, 300 fpm, 180 deg F, Kraft Board Frame, 3 to 10 micron, <20% Efficiency, 0.09 in WG Initial Resistance, 1/2 in WG Final Resistance, Fiberglass Media, 29-5/8 in H x 23-5/8 in W x 3/4 in D, Domestic
- Progressively dense heavy duty media
- Heavy duty one piece box frame construction
- Thermally bonded
- All corners shall be closed and sealed
- The fiberglass filter media shall be coated with a non-toxic, non-flammable, odor free adhesive
- Craftboard frame, double reinforcement struts, glue beads
| Depth | 1 in |
|---|---|
| MERV | 1 to 5 |
| Final Resistance | 1/2 in WG |
| Efficiency | <20% |
| Filter Rating | 3 to 10 micron |
| Temperature Rating | 180 deg F |
| Initial Resistance | 0.09 in WG |
| Height | 30 in |
| Width | 24 in |
| Overall Dimensions | 29-5/8 in H x 23-5/8 in W x 3/4 in D |
| Media Material | Fiberglass |
| Frame Material | Kraft Board |
| Domestic/Import | Domestic |
| Series | GDS |
| Flow Rate | 300 fpm |
| Brand | Glasfloss |
