Matco-Norca GSNAG5
5" ASB FREE RING GASKET KIT
SKU
273984

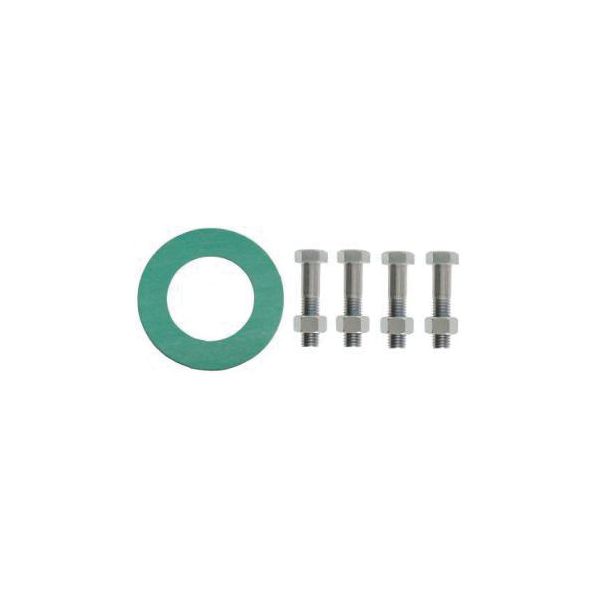

Matco-Norca™ Flange Ring Bolt and Gasket Set, 5 in Nominal, 1/16 in Thickness, Class: Class 150, 750 deg F, 1595 psi, Non-Asbestos Rubber, Plated, Domestic
- Constructed of aramid and other synthetic fibers and bonded with nitrile rubber
- Suitable for water, air, and a variety of industrial gases and fluids and steam depending on operating conditions
- 60,000 psi minimum tensile strength
- Zinc plated carbon steel Bolts
- zinc plated carbon steel finished hex nut
- 460 deg F Maximum continuous temperature
- 725 psi maximum continuous pressure
- APG style CNA-750
| Pressure Rating | 1595 psi |
|---|---|
| Thickness | 1/16 in |
| Material | Non-Asbestos Rubber |
| Domestic/Import | Domestic |
| Finish | Plated |
| Temperature Rating | 750 deg F |
| Class | Class 150 |
| Nominal Size | 5 in |
| Brand | Matco-Norca |
