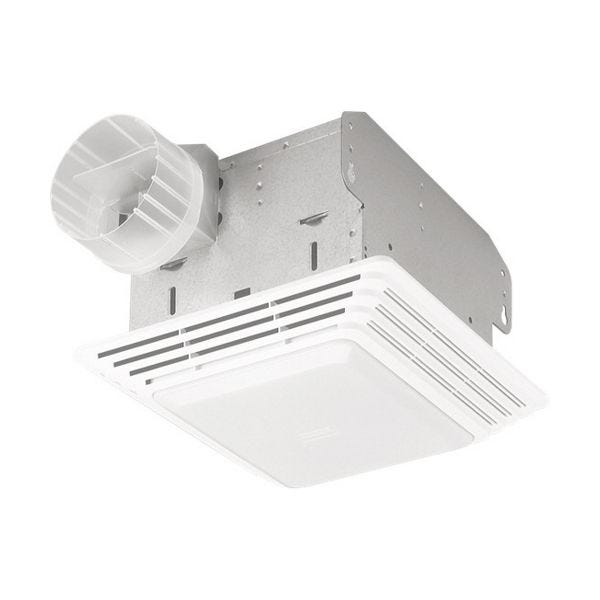

Broan HD80L
80CFM HEAVY DUTY FAN/LIGHT
SKU
268463
Broan® Ventilation Fan/Light, Heavy Duty Quiet, 80 cfm, 4 in Duct Dia, 120 VAC, 1.5 A, 60 Hz, 49 W, 2.5 Sones, 10-5/8 in Grille Length, 11-1/8 in Grille Width, Polymer Grille, 8 in Housing Length, 8-1/4 in Housing Width, 5-3/4 in Housing Height, Galvanized Steel Housing, Ceiling Mount, Humidity Sensing: No, Motion Sensing: No, White, Domestic
- Totally enclosed motor designed for continuous operation
- 100 W lighting capacity (bulb not included)
- Designer styled white polymeric grille with shatter resistant light diffusing lens
- Plug-in receptacles for fan and light
- Type IC (insulation contact)
- AMCA licensed for both air and sound
- 65 cfm at 1/4 in SP
- Horizontal duct direction
- Quiet heavy duty ceiling/wall fans built with high performance blowers
- Plug-in, permanently lubricated, totally enclosed motor
- Centrifugal blower wheel for quiet, efficient performance
- Long life motor bearings
- Designed for continuous operation
- Polymeric grille with sturdy light diffusing lens
- Rugged 26 ga galvanized steel construction housing
- Integral key-holed mounting brackets for easy, secure installation directly to joist
- Provision for wire suspension when installed in a drop ceiling
- 49 W at 0.1 in, 48 W at 1/4 in
- Tapered, polymeric duct fitting with built-in backdraft damper for easy, positive duct connection and no metallic clatter
- 80 cfm at 0.1 in SP/65 cfm at 1/4 in SP airflow rate
| Housing Material | Galvanized Steel |
|---|---|
| Type | Heavy Duty Quiet |
| Housing Height | 5-3/4 in |
| Frequency Rating | 60 Hz |
| Domestic/Import | Domestic |
| Sones | 2.5 |
| Flow Rate | 80 cfm |
| Grille Material | Polymer |
| Grille Length | 10-5/8 in |
| Voltage Rating | 120 VAC |
| Duct Diameter | 4 in |
| Humidity Sensing | No |
| Wattage Consumption | 49 W |
| Current/Amps | 1.5 A |
| Color | White |
| Housing Width | 8-1/4 in |
| Housing Length | 8 in |
| Motion Sensing | No |
| Mounting Type | Ceiling |
| Grille Width | 11-1/8 in |
| Brand | Broan-NuTone |
