ISOSTATIC 601008
1 X 5' STRAIGHT BAR, BARE
SKU
832872

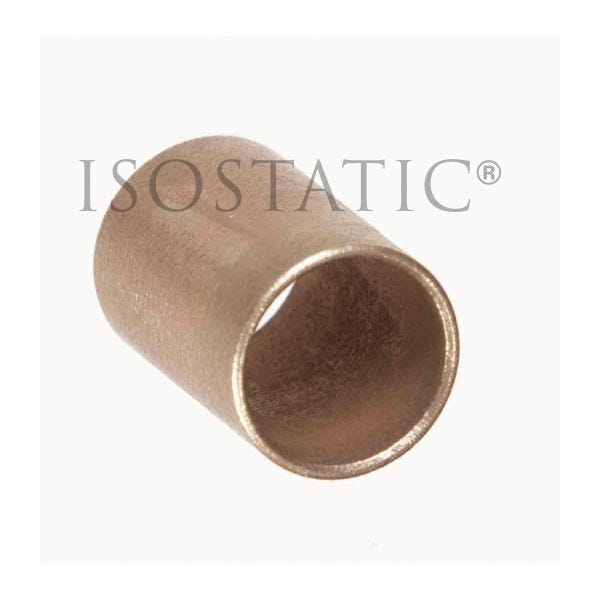

ISOSTATIC™ Oilube® Sleeve Bearing, Round Bore, 3 mm Bore, 6 mm OD, 6 mm Width, 10 to 175 deg F, 2000 psi Maximum, 1200 sfpm Maximum Velocity, 50000 psi/sq-ft/min Maximum PV, SAE 841 Powdered Metal/Oil Impregnated Bronze Bearing
- Standard stock products
- SAE 841 copper (87 to 90%), tin (8 to 9%), carbon and other elements
- Powdered metal bronze providing interconnected reservoirs for oil
- Vacuum impregnated with SAE 30 oil during the manufacturing process
- Self-lubricating, when in motion oil rises to the surface for lubrication and restores itself when at rest
- Ideal for heavy loads at moderate speeds or light loads at high speeds
| Type | Round Bore |
|---|---|
| Maximum Velocity | 1200 sfpm |
| Temperature Rating | 10 to 175 deg F |
| Bearing Material | SAE 841 Powdered Metal/Oil Impregnated Bronze |
| Maximum Pressure | 2000 psi |
| Width | 6 mm |
| Outside Diameter | 6 mm |
| Bore Diameter | 3 mm |
| Maximum PV Rating | 50000 psi/sq-ft/min |
| Brand | Wal-Rich Corp |
