Smith 1010Y04 (-C-R)
4"NH RF DRN,UNC,SUMP,POLYDOME
SKU
484324

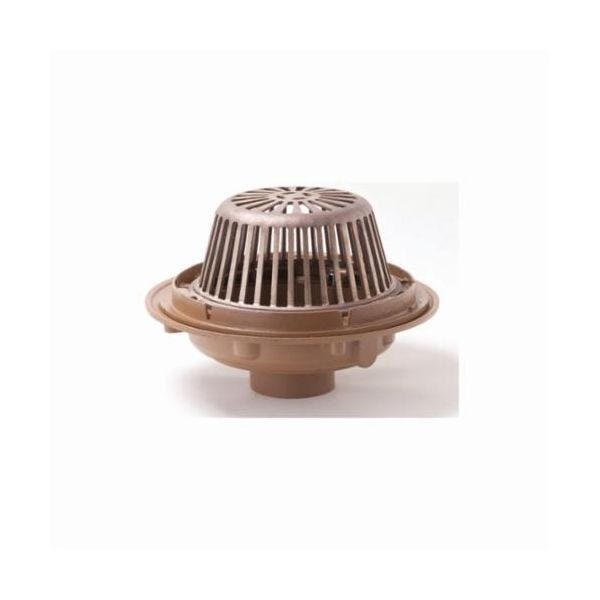

Smith® Roof Drain, Bottom, Series: 1010, 4 in Outlet, No-Hub Connection, Cast Iron Drain, 15-1/4 in Dia Dimensions
- C: underdeck clamp
- R: sump receiver
- Duco cast iron body with combined flashing clamp and gravel stop with polyethylene dome
- 102.5 sq-in free area
- Note: 08(200) & 10(250) outlet sizes are regularly furnished with 20(510) Dia flange, see back sheet, if 16(405) Dia flange is required -16 must be specified
- The dome height is 8 1/4 in (210) for the 122.5 sq in free area dome and is regularly furnished in cast iron and is not available in polyethylene
- Stated flow rates for roof drains are based on particular test piping configurations and dimensions
- Installed roof drain flow rates cannot be stated unless the attached piping configuration is known and the effects of the drainage calculated
| Type | Bottom |
|---|---|
| Dimensions | 15-1/4 in Dia |
| Outlet Size | 4 in |
| Drain Material | Cast Iron |
| Connection Type | No-Hub |
| Series | 1010 |
| Brand | J.R. Smith |
