Jomar Valve 100-654G
LF 3/4 3C-CC IPS W/CAP
SKU
836590

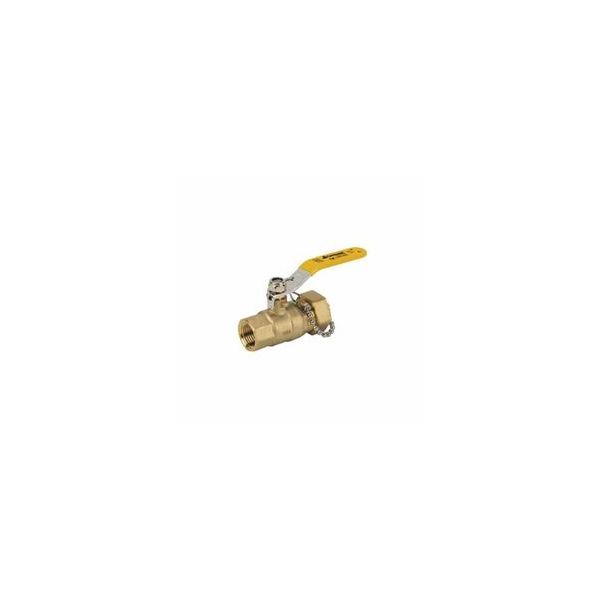

Jomar Valve® Ball Valve, 2-Piece, 3/4 in Nominal, NPT x Hose, 600 psi WOG, Full Port, 304 Stainless Steel Ball, 3.43 in Inlet to Outlet Length, 1.94 in Top to Inlet Center, Brass Body, 304 Stainless Steel Stem and PTFE Seat Trim, PTFE/Buna-N Softgoods
- Cap and chain for easy drain and hose connection
- Gland follower and single O-Ring stem design
- Heavy steel chain
- Blow-out proof stem
- 100% leak tested
- Wetted surface contains less than 0.25 % lead content
- 150 psi working steam pressure
- PTFE packing and Buna-N stem O-ring
| Softgoods Material | PTFE/Buna-N |
|---|---|
| Port Type | Full |
| End Style | NPT x Hose |
| Ball Material | 304 Stainless Steel |
| Inlet to Outlet Length | 3.43 in |
| Top to Inlet Center | 1.94 in |
| Type | 2-Piece |
| Pressure Rating | 600 psi WOG |
| Body Material | Brass |
| Nominal Size | 3/4 in |
| Trim Material | 304 Stainless Steel Stem and PTFE Seat |
| Brand | Jomar |
| Use | Threaded |
| Type | Ball Valve |
| Size | 3/4" |
