Jomar Valve 600-08DSEB
8" BFV-LUG EPDM
SKU
889038

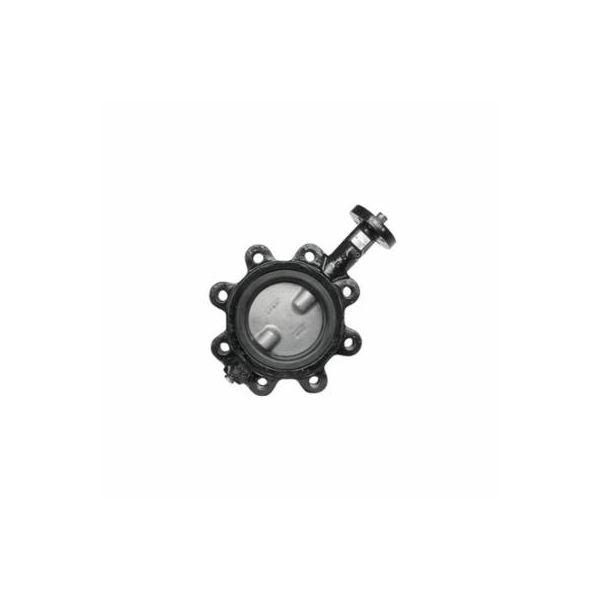

Jomar Valve® Butterfly Valve, Lug Style, Series: 600, 8 in Nominal, -30 to 250 deg F, Bare Stem Actuator, 10.24 in Top to Inlet Center, Ductile Iron Body, Stainless Steel Disc, Carbon Steel (Locating Pin) Stem & Pin Material, EPDM/PTFE, Epoxy Powder Coated
- Designed for commercial and industrial applications up to 200 psi
- Easily accepts actuator with ISO 5211 mounting flange
- Seat to flange seal eliminates the need for flange gaskets
- Series 600 lug bodies are bidirectional for dead end service
- Ideal for mounting pneumatic/electrical actuators
- Square stem for direct mount
- Wetted surface contain less than 0.25 % lead content
- EPDM O-ring and PTFE bushing
| Softgoods Material | EPDM/PTFE |
|---|---|
| Stem & Pin Material | Carbon Steel (Locating Pin) |
| Disc Material | Stainless Steel |
| Top to Inlet Center | 10.24 in |
| Type | Lug Style |
| Body Material | Ductile Iron |
| Nominal Size | 8 in |
| Temperature Rating | -30 to 250 deg F |
| Series | 600 |
| Actuator Type | Bare Stem |
| Finish | Epoxy Powder Coated |
| Brand | Jomar |
| Type | Butterfly Valves |
