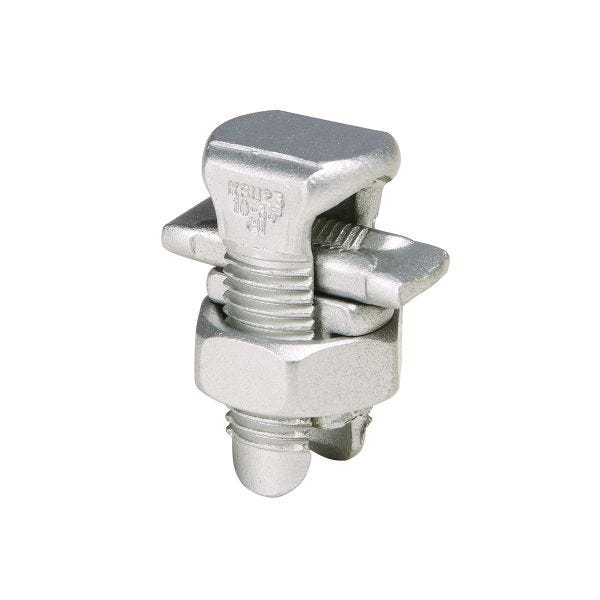

BURNDY KSU20
SERVIT UNIV 4R-4T CU TN
SKU
805939
BURNDY® SERVIT® Split Bolt Connector, Universal, Series: KSU, 1 Conductors, 10 to 4 AWG Conductor, 15 in Length, 0.48 in Width, 165 in-lb, Copper Alloy, Tin Coated
- Tin plated, high strength copper alloy SERVIT with spacer
- Spacer separates dissimilar conductors and provides long contact length that prevents high pressure point contacts between run and tap conductors
- Use of PENETROX™ joint compound recommended with aluminum and ACSR
- Conductor type - run ACSR, 5005, AAAC, commercial stranded aluminum, commercial stranded and solid copper, tap - ACSR, 5005, AAAC, commercial stranded aluminum, commercial stranded and solid copper, steel (nominal diameter)
- 0.69 in across flats
- 10 to 4 AWG of copper tap range, 8 to 2 AWG of copper stranded run (range), 10 to 4 AWG of copper solid tap (range) and copper solid run size (range)
- High conductivity copper alloy
- 10 to 4 AWG main/primary, tap/secondary
| Torque Rating | 165 in-lb |
|---|---|
| Number of Conductors | 1 |
| Conductor Size | 10 to 4 AWG |
| Length | 15 in |
| Series | KSU |
| Material | Copper Alloy |
| Type | Universal |
| Finish | Tin Coated |
| Width | 0.48 in |
| Brand | Burndy LLC |
