Legend 108-045NL
12" SILLCOCK LF F1960PEX W/VAC
SKU
756169

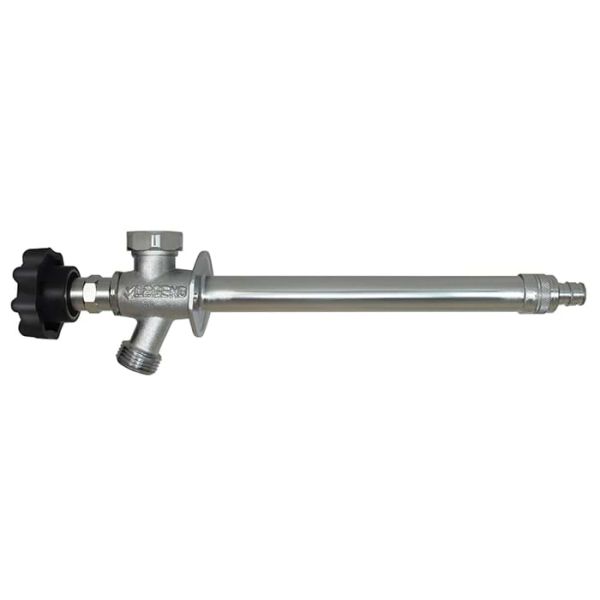

LEGEND Sillcock, Multi-Turn Anti-Siphon Frostfree, Series: TM-550PNL, 1/2 x 12 in Nominal, PEX F1960 End Style, 125 psi CWP Pressure, Media: Potable Water, Brass Body, Forged Brass/Aluminum/304 Stainless Steel Trim, Handwheel Actuator, Polished Chrome, 17.88 in L x 3.4 in H Dimensions, Import
- Patented, rubber-coated handwheel is easy to operate with wet or gloved hands
- The UV stabilized rubber coating resists sunlight cracking and weathering
- Oversized, angled mounting flange with screw slots covers enlarged, over-drilled sill holes, facilitates the correct downward drainage pitch and mounts more easily and securely than smaller flanges with notches
- Lockshield packing nut extends beyond the end of the stem, permitting handle removal, which prevents unauthorized operation
- All body segments are polished chrome, providing better corrosion-resistance over competitor's unplated versions
- Lead-free design is suitable for all lead-free potable water installations, in full compliance of all lead-free plumbing laws
- Trim material - lead-free forged brass stem, aluminum identification disc, 304 stainless steel piston check spring
| Pressure Rating | 125 psi CWP |
|---|---|
| Body Material | Brass |
| Type | Multi-Turn Anti-Siphon Frostfree |
| Domestic/Import | Import |
| Finish | Polished Chrome |
| Trim Material | Forged Brass/Aluminum/304 Stainless Steel |
| End Style | PEX F1960 |
| Media | Potable Water |
| Series | TM-550PNL |
| Dimensions | 17.88 in L x 3.4 in H |
| Actuator Type | Handwheel |
| Nominal Size | 1/2 x 12 in |
| Brand | Legend |
