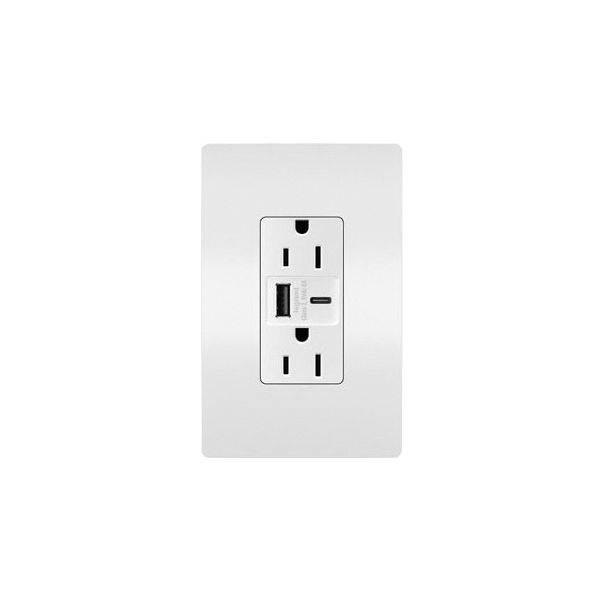

Pass & Seymour R26USBAC6W
15A TAMPER USB A/C RECPTICAL
SKU
904735
Pass & Seymour® USB Charging Receptacle, Duplex Hybrid Ultra-Fast, Series: radiant®, 15 A, 125 VAC Electrical Rating, 14 to 10 AWG Wire, Type-A USB 2.0/C USB, 2 USB Quantity, 6 A USB, 2.69 in H x 1.74 in W x 1.67 in D Size, Screw Connection, Wiring Method: Back/Side Wire, Nylon/Polycarbonate, White, Environmental Conditions: -40 to 60 deg C Operating Temperature
- Smart chip technology to maximize charge speeds at each USB port
- Reversible type C USB connector to accommodate latest mobile devices
- Back and side wire terminals accommodate 14 to 10 AWG stranded and solid copper wire for installation flexibility
- 12 to 14 in-lb tightening torque
- Scalloped cover design and posted side wire terminal screws allow for faster and easier installs
- Score lines on device ears for easy removal prior to drywall routing
| Wire Size | 14 to 10 AWG |
|---|---|
| Electrical Ratings | 15 A, 125 VAC |
| Environmental Conditions | -40 to 60 deg C Operating Temperature |
| Connection | Screw |
| Color | White |
| Size | 2.69 in H x 1.74 in W x 1.67 in D |
| USB Type | Type-A USB 2.0/C |
| Material | Nylon/Polycarbonate |
| USB Rating | 6 A |
| Type | Duplex Hybrid Ultra-Fast |
| USB Quantity | 2 |
| Wiring Method | Back/Side Wire |
| Series | radiant® |
| Brand | Pass & Seymour |
| Color | White |
| Voltage | 125V |
| Type | Receptacles & USB Ports |
| Amperage | 15A |
| Number | Duplex |
