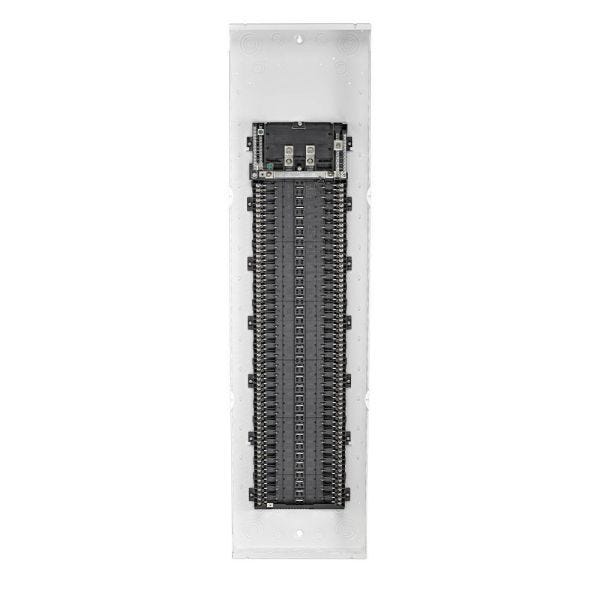

Leviton LP622-1L
225A 66SP LC ML INDOOR PANEL
SKU
902941
Leviton® Load Center, 120/240 VAC, 225 A, 22 kA Interrupt, 66 Circuits, Plug-On Breaker Mounting, 3-Wire Wiring Configuration, 225 A Bus, 66 Spaces, 4 to 2/0 AWG, 6 AWG to 300 kcmil Wire, Wall Mounting, NEMA 1 Enclosure, Galvanized Steel Housing Material, 55.8 in L x 14.3 in W x 4 in D Dimensions
- Terminate all hot and neutral wires at custom lugs in the panel, not at the circuit breaker
- The entire panel can be wired at rough-in without circuit breakers installed
- At final installation, simply plug-on the circuit breaker
- No pigtails on circuit breakers
- Easily invertible for bottom feed applications
- Copper bus is standard
- Notches stamped into the enclosure for cable ties promote secure and neat wiring
- Hydraulic magnetic trip technology ensures precise tripping even in extreme temperature ranges
- Leviton® GFCI, AFCI and dual function circuit breakers feature our patented reset lockout and will not reset if ground or arc fault
- Leviton® circuit breakers with GFCI technology stand alone as the only circuit breakers on the market that exceed the newest UL requirements for ground fault protection
- Intuitive LEDs help communicate trip condition and type of fault (AF/GF) and remain illuminated even when the circuit breaker is in the tripped state
| Wiring Configuration | 3-Wire |
|---|---|
| Number of Circuits | 66 |
| Enclosure Type | NEMA 1 |
| Bus Rating | 225 A |
| Number of Spaces | 66 |
| Wire Size | 4 to 2/0 AWG, 6 AWG to 300 kcmil |
| Mounting Type | Wall |
| Housing Material | Galvanized Steel |
| Interrupt Rating | 22 kA |
| Amperage Rating | 225 A |
| Breaker Mounting | Plug-On |
| Voltage Rating | 120/240 VAC |
| Dimensions | 55.8 in L x 14.3 in W x 4 in D |
| Brand | Leviton Mfg |
