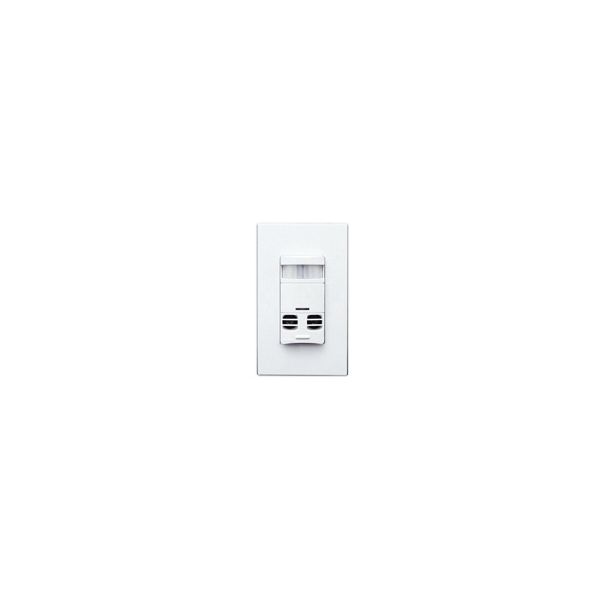

Leviton OSSMT-GDI

Leviton® Decora® Occupancy Sensor, 1-Pole Field Configurable Self Adjusting, 120/230/277/347 VAC, 70/110 mW, Multi-Technology/PIR/Ultrasonic Sensor, 2400 sq-ft Coverage, 180 deg Viewing, 30 s to 30 min Delay, Fluorescent/Incandescent/Tungsten Lamp, 50/60 Hz Response, Manual On/Automatic Off Control Output, Wall Mount, 0 to 40 deg C, Ivory, 46 in H x 1.75 in W x 1.85 in D

• Fast, simple installation fits in a standard wallbox and replaces a 1-pole wall switch
• Sensor can be ganged together with other units in a multiple-switch wallplate
• Low profile design eliminates obtrusive scanning-device look
• Convenient pushbutton provides manual ON/OFF light switching at any time
• Segmented fresnel lens provides optimum sensitivity and performance designed with an extensive minor motion area where even slight body movements will be detected
• Vandal resistant PIR lens
• Adjustable horizontal field-of-view (PIR may be adjusted between 180 and 60 deg of arc by using integral blinders located on either side of the lens), no masking required
• Manual ON/auto OFF mode for installations where manual ON switching is required but auto OFF switching is still desired for CEC title T24 energy savings
• To comply with CED title 24, LED indicator light flashes when sensor detects motion to verify detection is active, green flashes for ultrasonic, red flashes for PIR
• The delayed OFF time is preset at 30 min in the auto-adapting mode, the LED will flash when the adjusting knob is set to the indicated time value
• Ambient light recognition integrated light sensor prevents lights from turning ON when the room is adequately illuminated by natural light
• Self-adaptive technology callbacks for adjustment are eliminated, time delay and sensitivity settings are continually adjusted to occupant patterns of use in auto adapt mode
• Exclusive Walk-through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
• Vacancy confirmation when the time out expires and the relays turns OFF, a 30 sec (OSSMT-G) or 40 sec (OSSMT-M) vacancy confirmation exists to turn the relays back ON
• False detection circuitry
• Small motion sensitivity ultrasonic technology provides excellent minor motion sensitivity
• Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied
• Exclusive Leviton® high inrush stability (HIS) circuitry, specifically designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service
• True zero cross relay switches at the zero crossing point of the AC power curve to ensure maximum contactor life and compatibility with electronic ballasts
• Elegant Decora® wallplates complement any interior for sleek aesthetics, uses Decora® wallplates and coordinates with Leviton® popular line of Decora® wiring devices
