Liberty Pumps 404
1/3HP SHORT PROFILE LAUNDRY P
SKU
372148

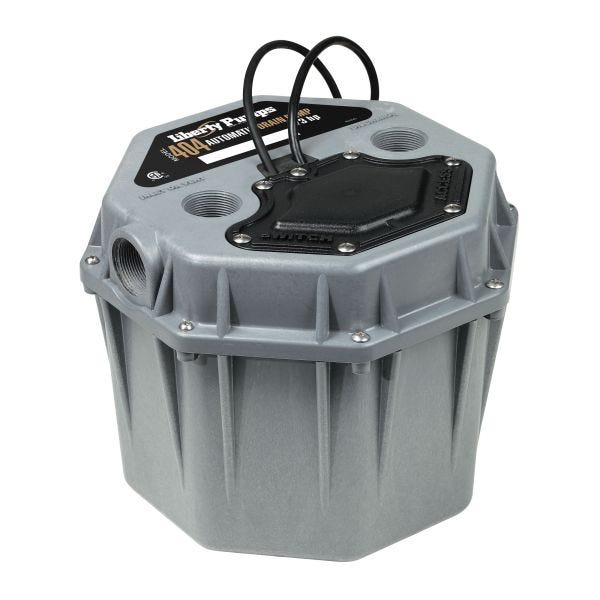

Liberty Pumps®, 404, Compact Low Profile Fully Automatic, Series: 404, 50 gpm Flow Rate, 1-1/2 in FNPT Inlet, 1-1/2 in FNPT Outlet, 21 ft Maximum Head, 1/3 hp, 115 VAC, 5.2 A, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJTW 10 ft Cord, Vortex High Temperature Engineered Polymer Impeller, 104 deg F Continuous/140 deg F Intermittent, Sealed Bearing, Polypropylene, 13-3/4 in W x 11-1/8 in H Dimensions
- Pre-assembled and ready to install
- Short profile for compact areas - only 11 in tall
- Separate access cover for easy switch inspection
- Integrally molded rubber gasket for a superior gastight seal
- Oil filled, hermetically sealed motor with thermal overload protection, 10 ft three wire power cord with grounded plug
- Corrosion-resistant polyolefin basin with molded in connections
- Maintenance-free, permanently lubricated sealed bearings
- 3/8 in solid handling
- Compact design for tight areas
- QuickTree® technology allows quick inspection and removal of float switch without disconnecting the plumbing
- Without alarm
- No alarm
| Amperage Rating | 5.2 A |
|---|---|
| Frequency Rating | 60 Hz |
| Motor Speed | 3450 rpm |
| Temperature Rating | 104 deg F Continuous/140 deg F Intermittent |
| Inlet Size | 1-1/2 in FNPT |
| Horsepower | 1/3 hp |
| Phase | 1 ph |
| Dimensions | 13-3/4 in W x 11-1/8 in H |
| Cord Type | SJTW 10 ft |
| Type | Compact Low Profile Fully Automatic |
| Impeller Type | Vortex High Temperature Engineered Polymer |
| Series | 404 |
| Flow Rate | 50 gpm |
| Voltage Rating | 115 VAC |
| Bearing Type | Sealed |
| Maximum Head | 21 ft |
| Outlet Size | 1-1/2 in FNPT |
| Material | Polypropylene |
| Brand | Liberty Pumps |
