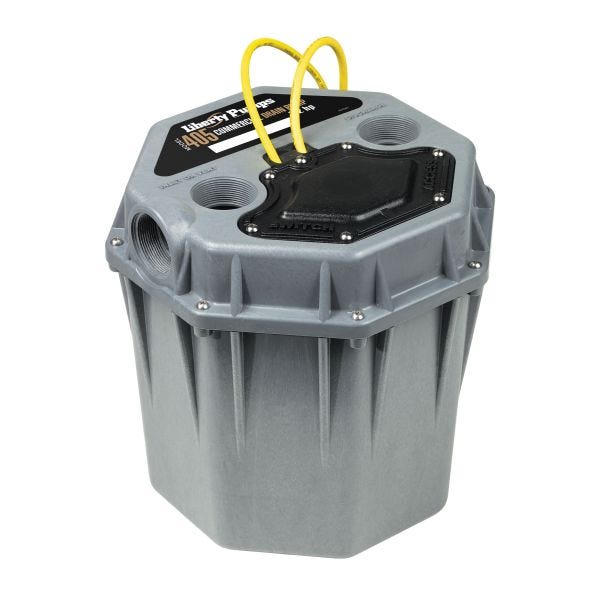

Liberty Pumps 405HV
LIBERTY 230V 405HV
SKU
389241
Liberty Pumps®, 405HV, High Temperature Fully Automatic, Series: 405, 54 gpm Flow Rate, 2 in FNPT Inlet, 2 in FNPT Outlet, 34 ft Maximum Head, 1/2 hp, 230 VAC, 3.5 A, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJTOOW 10 ft Cord, Vortex High Temperature Engineered Polymer Impeller, 180 deg Continuous, Sealed Bearing, Polypropylene, 13-3/4 in W x 14-1/8 in H Dimensions
- Pre-assembled and ready to install
- Fully automatic operation
- High head, high temperature
- Separate access cover for easy switch inspection
- Integrally molded rubber gasket for a superior gastight seal
- QuickTree® technology allows quick inspection and removal of float switch without disconnecting the plumbing
- Oil filled, hermetically sealed motor with thermal overload protection, 10 ft three wire power cord with grounded plug
- Corrosion-resistant polyolefin basin with molded in connections
- Maintenance-free, permanently lubricated sealed bearings
- 10 ft power cord with ground plug
- 3/8 in solid handling
| Material | Polypropylene |
|---|---|
| Cord Type | SJTOOW 10 ft |
| Frequency Rating | 60 Hz |
| Temperature Rating | 180 deg Continuous |
| Impeller Type | Vortex High Temperature Engineered Polymer |
| Bearing Type | Sealed |
| Series | 405 |
| Outlet Size | 2 in FNPT |
| Voltage Rating | 230 VAC |
| Flow Rate | 54 gpm |
| Inlet Size | 2 in FNPT |
| Maximum Head | 34 ft |
| Motor Speed | 3450 rpm |
| Dimensions | 13-3/4 in W x 14-1/8 in H |
| Phase | 1 ph |
| Amperage Rating | 3.5 A |
| Horsepower | 1/2 hp |
| Type | High Temperature Fully Automatic |
| Brand | Liberty Pumps |
