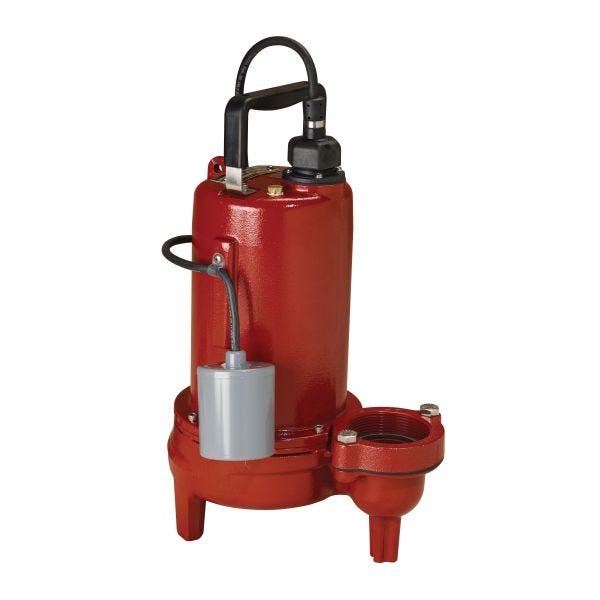

Liberty Pumps LEH102A2
1HP 208/230/1 SEWAGE PUMP
SKU
331810
Liberty Pumps®, LEH102A2, Automatic, Series: LEH100, 200 gpm Flow Rate, 2 in Flanged Outlet, 53 ft Maximum Head, 1 hp, 208 to 230 VAC, 12 A Full Load/28.6 A Locked Rotor, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJOOW 10 ft Cord, 1 Service Factor, Cast Iron 2-Vane Semi-Open Impeller, 248 deg F Thermal Overload, Ball Bearing, Cast Iron, 12.5 in W x 18.9 in H Dimensions
- Rugged two vane, semi-open cast iron impeller
- Cast iron housings and volute with all stainless steel and brass fasteners
- Stainless and brass fasteners
- Oil filled, hermetically sealed motor
- 17-4 PH stainless steel shaft
- Permanently lubricated upper and lower ball bearings
- Unitized shaft seal
- Adjustable pumping range
- Quick connect 10 ft power cord
- Built-in thermal protection on 1-phase models
- Single float mechanical level control with series plug for manual bypass operation standard on 1-phase automatic models
- 2 in solid handling
| Outlet Size | 2 in Flanged |
|---|---|
| Series | LEH100 |
| Horsepower | 1 hp |
| Flow Rate | 200 gpm |
| Motor Speed | 3450 rpm |
| Frequency Rating | 60 Hz |
| Amperage Rating | 12 A Full Load/28.6 A Locked Rotor |
| Material | Cast Iron |
| Service Factor | 1 |
| Phase | 1 ph |
| Type | Automatic |
| Voltage Rating | 208 to 230 VAC |
| Bearing Type | Ball |
| Maximum Head | 53 ft |
| Impeller Type | Cast Iron 2-Vane Semi-Open |
| Temperature Rating | 248 deg F Thermal Overload |
| Dimensions | 12.5 in W x 18.9 in H |
| Cord Type | SJOOW 10 ft |
| Brand | Liberty Pumps |
