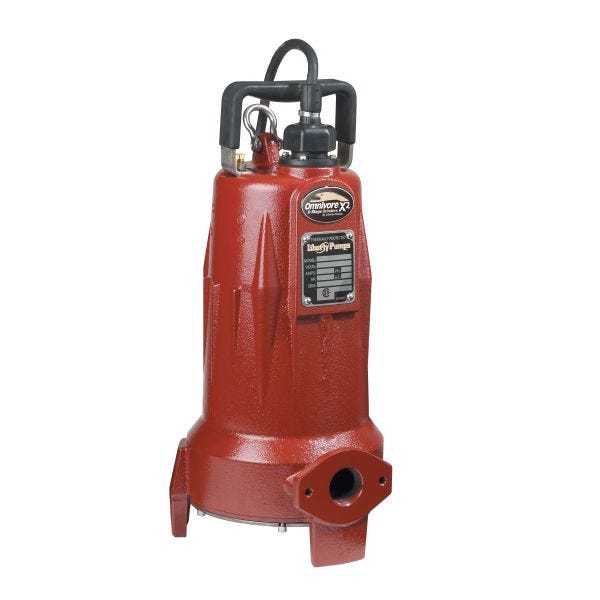

Liberty Pumps LSGX203M
2HP 2-STAGE 208-230V 3PH GRDR
SKU
574823
Liberty Pumps®, LSGX203M, 2-Stage High-Head, Series: LSGX200, 39 gpm Maximum, 10 ft Rated Head, Automatic/Non Automatic: Non-Automatic, 1-1/4 in NPT Outlet, 185 ft Maximum Head, 2 hp, 208/230 VAC, 10.6 A Full Load/61 A Locked Rotor, 60 Hz Frequency, 3 ph, 3450 rpm Motor, SEOOW 25 ft Cord, 1 Service Factor, 300 Stainless Steel Impeller, 275 deg F Thermal Overload, Upper Radial/Lower Thrust Bearing, Fiberglass
- One-piece unit body casting
- 300 Series SS rotor shaft
- Quick connect 25 ft power cord
- The LSGX Omnivore® two-stage grinder pump features patented V-Slice® cutter technology
- The hardened stainless steel cutting system provides in excess of 370000 cuts/min and aggressively shreds jeans, shop rags, diapers, sanitary napkins and other difficult solids into a fine slurry
- A unique open volute design eliminates the cutwater improving solids flow and reducing potential jamming of material in the volute
- Capacitors are integral to the pump, eliminating the need for an expensive control panel
| Material | Fiberglass |
|---|---|
| Service Factor | 1 |
| Outlet Size | 1-1/4 in NPT |
| Cord Type | SEOOW 25 ft |
| Motor Speed | 3450 rpm |
| Series | LSGX200 |
| Bearing Type | Upper Radial/Lower Thrust |
| Rated Head | 10 ft |
| Frequency Rating | 60 Hz |
| Type | 2-Stage High-Head |
| Horsepower | 2 hp |
| Maximum Flow Rate | 39 gpm |
| Maximum Head | 185 ft |
| Impeller Type | 300 Stainless Steel |
| Automatic/Non Automatic | Non-Automatic |
| Temperature Rating | 275 deg F Thermal Overload |
| Amperage Rating | 10.6 A Full Load/61 A Locked Rotor |
| Voltage Rating | 208/230 VAC |
| Phase | 3 ph |
| Brand | Liberty Pumps |
