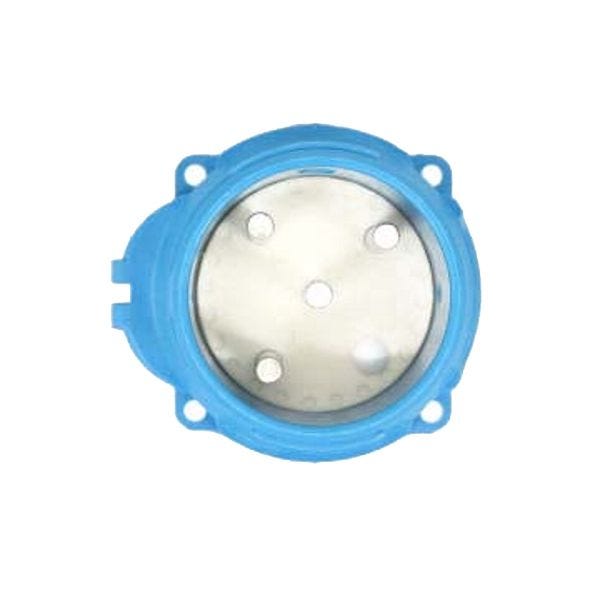

MELTRIC DECONTACTOR™ Male Inlet, Switch Rated, Series: DSN30, 110/125/220/250 VAC, 30 A, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 4X NEMA Rating, IP66/IP67/IP69K Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue
- Switch and hp rated (AC only)
- 100 kA short circuit rated
- Compact, lightweight design
- Up to 4 auxiliary contacts
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance
- 1 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 5 hp at 208/240 VAC, 10 hp at 480 VAC, 15 hp at 600 VAC 3-phase horsepower rating
| Series | DSN30 |
|---|---|
| Number of Poles | 3 |
| Enclosure | IP66/IP67/IP69K |
| Color | Blue |
| Type | Switch Rated |
| Amperage Rating | 30 A |
| Number of Wires | 4 |
| Voltage Rating | 110/125/220/250 VAC |
| Temperature Rating | -40 to 140 deg F |
| Material | Polyester |
| Terminal Type | Screw |
| NEMA Rating | NEMA 4X |
| Frequency Rating | 60 Hz |
| Brand | Meltric |
