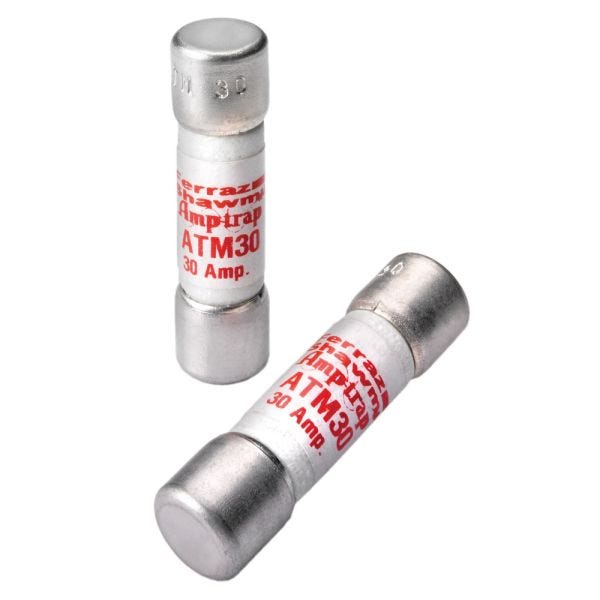

Mersen ATM30
30A 600V MIDGET FUSE
SKU
676836
Mersen Amp-Trap® Fast Acting Fuse, Low Voltage, Series: ATM, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 30 A, 600 VAC/VDC, 100 kA Interrupt, Class: Midget, 12.5 s Response, Ferrule Terminal, Clip Mount, Cylindrical Body, Single Element, Fiber, 13/32 in Dia x 1-1/2 in L Body Size
- Extended ratings for special protection of capacitors and circuits with high inrush currents
- 600 VDC ratings for a wide variety of applications including photovoltaic and solar applications
- Tin-plated copper contact
- Can be used with UltraSafe™ fuse holders
| Body Type | Cylindrical |
|---|---|
| Voltage Rating | 600 VAC/VDC |
| Type | Low Voltage |
| Rejection/Non-Rejection | Non-Rejection |
| Amperage Rating | 30 A |
| Interrupt Rating | 100 kA |
| Class | Midget |
| Element | Single |
| Material | Fiber |
| Terminal Type | Ferrule |
| Mounting Type | Clip |
| Indicating/Non-Indicating | Non-Indicating |
| Response Time | 12.5 s |
| Body Size | 13/32 in Dia x 1-1/2 in L |
| Series | ATM |
| Brand | Merson Fuses |
