Milbank U5168-XTL-200-KK
200A MAIN
SKU
710115

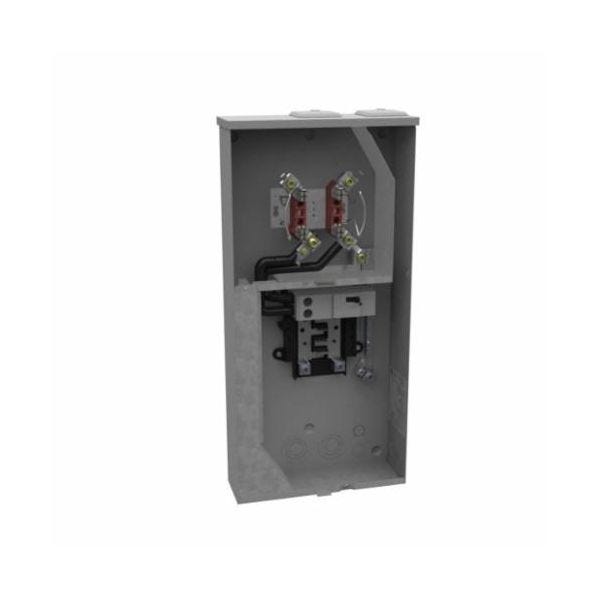

Milbank® Meter Socket, Ringless, 240 VAC, 200 A, 1 Phase, 60 Hz Frequency, Overhead/Underground Feed, 4 Jaws, 6 AWG to 350 kcmil Wire, Plate Hub, Lay-In Terminal, Surface Mounting, NEMA 3R Enclosure, 30 in H x 14-1/8 in W x 4-1/2 in D Dimensions
- 1 number of cut-out
- Lay in line side and single mechanical load side terminal
- Twin small closing plate hub
- G90 galvanized steel with powder coat finish enclosure
- Horn bypass provision
- 200 A main breaker cut-out
- 6 AWG - 300 kcmil line/load aluminum/copper
- Lay in Line/Single mechanical Load
- 200 A main breaker cut-out size
- Meter socket with main and load center
| Hub Type | Plate |
|---|---|
| Terminal Type | Lay-In |
| Feed Type | Overhead/Underground |
| Mounting Type | Surface |
| Type | Ringless |
| Phase | 1 |
| Frequency Rating | 60 Hz |
| Enclosure Type | NEMA 3R |
| Dimensions | 30 in H x 14-1/8 in W x 4-1/2 in D |
| Wire Size | 6 AWG to 350 kcmil |
| Voltage Rating | 240 VAC |
| Number of Jaws | 4 |
| Amperage Rating | 200 A |
| Brand | Milbank |
