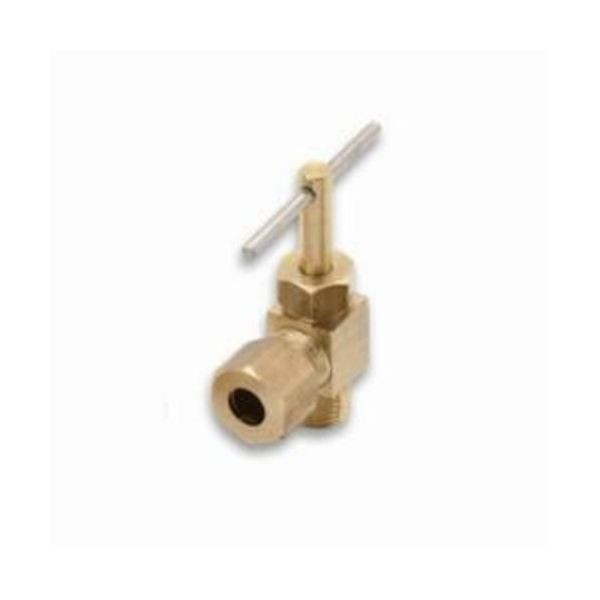

BrassCraft NV104-4-2X
LF 1/4OD X 1/8MIP NEEDLE VLV
SKU
595231
BrassCraft® Humidifier Valve, Angle, Series: NV104, 1/4 x 1/8 in Nominal, Compression x MNPT End Style, 150 psi Pressure, -65 to 250 deg F, 1.73 in Top to Inlet Center, Brass Body, Brass Trim, EPDM Rubber Washer Softgoods, Rough, 0.95 in Hex Dimensions, Import
- Not intended for natural gas, LPG, nuclear or aircraft applications
- Metal-to-metal seats with fine thread adjustment
- Positive sealing and flow adjustment up to the capacity of the valve
- 40 to 140 deg F for water applications, 115 deg F maximum continuous use temperature
- 7/16-24 straight thread
- Steel handle
- Complaint needle valve options available for California and Vermont "low-lead" requirements
- Complaint brass stem
- Complaint brass body
- For use on instrumentation, hydraulic and pneumatic system
| Temperature Rating | -65 to 250 deg F |
|---|---|
| Finish | Rough |
| Dimensions | 0.95 in Hex |
| End Style | Compression x MNPT |
| Body Material | Brass |
| Type | Angle |
| Softgoods Material | EPDM Rubber Washer |
| Trim Material | Brass |
| Top to Inlet Center | 1.73 in |
| Domestic/Import | Import |
| Nominal Size | 1/4 x 1/8 in |
| Series | NV104 |
| Pressure Rating | 150 psi |
| Brand | BrassCraft |
| OD Tube Size | 1/4" |
| Type | Valve |
