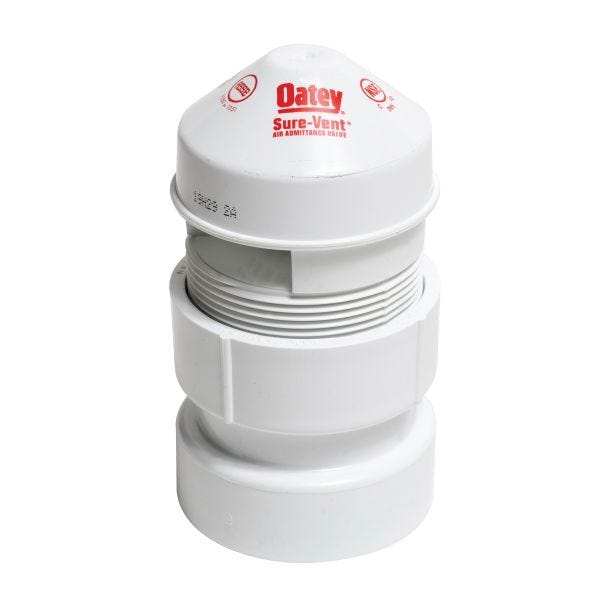

Oatey 39016
11/2-2 PVC 20 DFU SURE-VENT
SKU
445589
Oatey® Air Admittance Valve, 1-1/2 to 2 in Nominal, NPT End Style, -40 to 150 deg F, 20 DFU Flow Rate, 2.46 in Inlet to Outlet Length, PVC Body, 4.53 in H, Domestic
- For use as a secondary vent
- One size approved to handle upto 3 in vent pipe
- Vents upto 160 DFU branch or 24 DFU stack
- Sweet Spot™ technology opens at 0.01 psi and seals at 0 psi and above
- Screening on air inlets to guard the seal
- Protective sleeve provides grip for installation and keeps valve free from debris
- 100% functionally tested at 1/4 in H2O and 30 in H2O ensuring trouble free performance
- Opens/closes as needed by building's plumbing system
| Domestic/Import | Domestic |
|---|---|
| End Style | NPT |
| Dimensions | 4.53 in H |
| Inlet to Outlet Length | 2.46 in |
| Body Material | PVC |
| Nominal Size | 1-1/2 to 2 in |
| Flow Rate | 20 DFU |
| Temperature Rating | -40 to 150 deg F |
| Brand | Oatey |
