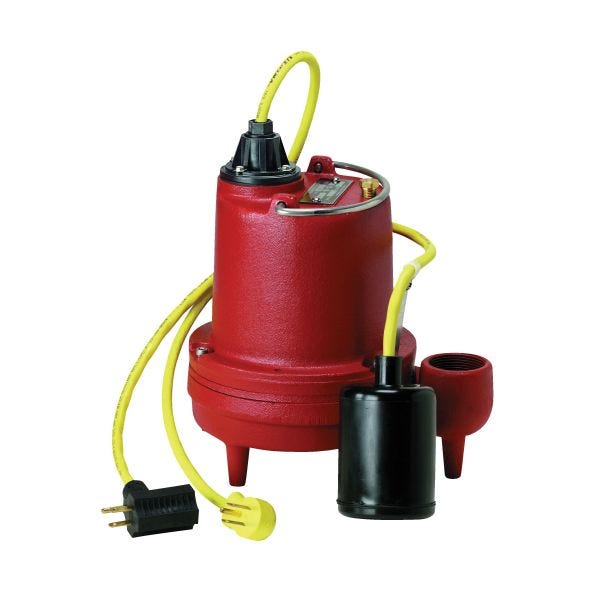

Liberty Pumps HT41A-2
4/10 HP HIGH TEMP SUMPPUMP W/25'CORD LIBERTY
SKU
494030
Liberty Pumps®, HT41A-2, Automatic High Temperature, Series: HT40, 65 gpm Flow Rate, 1-1/2 in FNPT Outlet, 20 ft Maximum Head, 4/10 hp, 115 VAC, 12 A Full Load, 60 Hz Frequency, 1 ph, 1550 rpm Motor, 25 ft SJEOOW Cord, Vortex Impeller, 302 deg F Thermal Overload, Ball/Race Bearing, Cast Iron, 9.8 in W x 9.6 in H Dimensions
- Vortex impeller prevents clogging
- Impeller made of high temp thermoplastic
- Cast iron construction
- Stainless steel and brass fasteners
- 416 stainless steel rotor shaft
- Oil filled, thermally protected motor
- Permanently lubricated bearings
- Unitized shaft seal
- 200 deg F maximum fluid temperature
- 3/4 in solid handling
- Quick-connect power cord
| Material | Cast Iron |
|---|---|
| Cord Type | 25 ft SJEOOW |
| Frequency Rating | 60 Hz |
| Temperature Rating | 302 deg F Thermal Overload |
| Impeller Type | Vortex |
| Bearing Type | Ball/Race |
| Series | HT40 |
| Outlet Size | 1-1/2 in FNPT |
| Voltage Rating | 115 VAC |
| Flow Rate | 65 gpm |
| Maximum Head | 20 ft |
| Motor Speed | 1550 rpm |
| Dimensions | 9.8 in W x 9.6 in H |
| Phase | 1 ph |
| Amperage Rating | 12 A Full Load |
| Horsepower | 4/10 hp |
| Type | Automatic High Temperature |
| Brand | Liberty Pumps |
