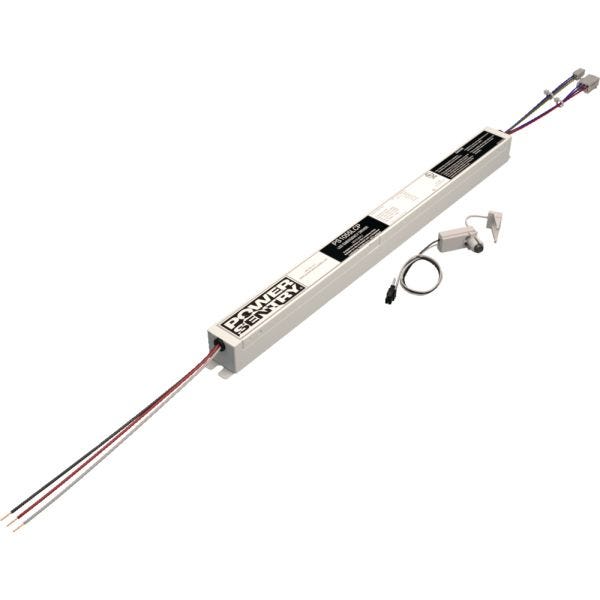

Power Sentry PS1055LCP M5
15W EMERGENCY BATTERY PACK
SKU
866666
Power Sentry® PS1055LCP M5 Emergency LED Driver, Battery Pack, Series: PS1055LCP, 120 to 277 VAC Input, 15 to 55 VDC Output, 10 W Power, 25/660 mA, 16.7 in Length, 1.19 in Width, 1.18 in Height, 41 to 122 deg F, Thermoplastic
- Class II, constant power output over 90 min
- 2-wire universal AC input
- Integrated self-diagnostics standard
- AC activate eliminates need for field wiring when factory installed
- Compact, low profile linear form factor for narrow driver channels
- Double isolation safeguard technology protects against failures or feedback from other devices in the luminaire compromising the functionality of the emergency driver
| Input Voltage | 120 to 277 VAC |
|---|---|
| Temperature Rating | 41 to 122 deg F |
| Amperage Rating | 25/660 mA |
| Material | Thermoplastic |
| Type | Battery Pack |
| Height | 1.18 in |
| Output Voltage | 15 to 55 VDC |
| Length | 16.7 in |
| Power Rating | 10 W |
| Series | PS1055LCP |
| Width | 1.19 in |
| Brand | Lithonia Lighting |
