Red-White Valve 5015AB 1
LF 1" EXP PEX RP BV F1960
SKU
619399

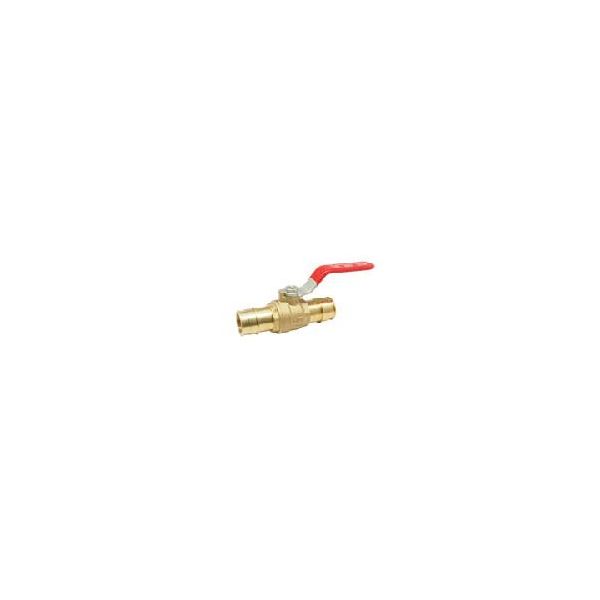

RWV® Ball Valve, 1 in Nominal, PEX Barb, 400 lb, Regular Port, Media: Gas/Oil/Water, 0.73 in Orifice, Brass Ball, 3.86 in Inlet to Outlet Length, 1.77 in Top to Inlet Center, Brass Body, Brass Stem and Virgin PTFE Seat Trim
- Double NBR O-Ring packing
- Blow-out proof stem
- For use with PEX tubing
- 300 psi at 15 to 160 deg F
- 150 psi maximum at 200 deg psi
- Low-lead brass ball
- F1960 certifications for pex expansion pipe fittings
| Port Type | Regular |
|---|---|
| End Style | PEX Barb |
| Media | Gas/Oil/Water |
| Ball Material | Brass |
| Pressure Class | 400 lb |
| Inlet to Outlet Length | 3.86 in |
| Top to Inlet Center | 1.77 in |
| Orifice Size | 0.73 in |
| Body Material | Brass |
| Nominal Size | 1 in |
| Trim Material | Brass Stem and Virgin PTFE Seat |
| Brand | Red & White Valve |
| Type | Ball Valve |
| Size | 1" |
