RWV 5060AB 3/4
LF 3/4 IPS DRAINABLE BV
SKU
426407

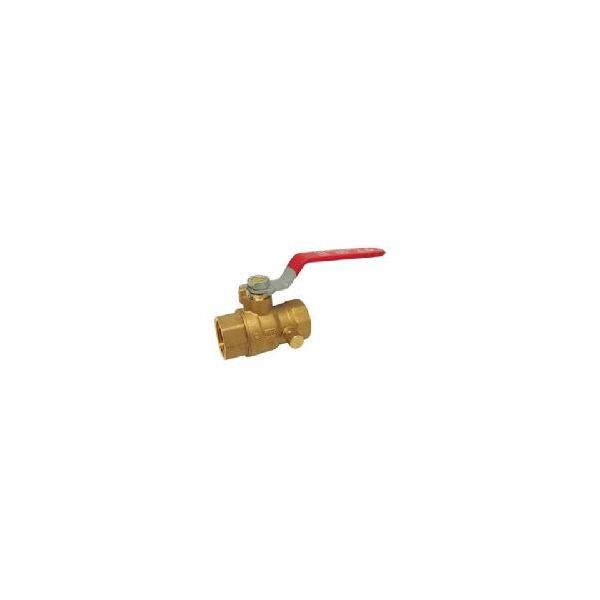

RWV® Ball Valve, 1-Piece, Series: 5060AB, 3/4 in Nominal, Thread End Style, 600 lb WOG Pressure, 15 to 160 deg F, Full Port, 0.79 in Orifice, Chrome Plated Low Lead Brass Ball, 2.78 in Inlet to Outlet Length, 2.26 in Top to Inlet Center, Brass Body, Low Lead Brass Stem and PTFE Seat Trim, PTFE Softgoods
- Blow-out proof stem
- Adjustable packing nut
- Drain port on body
- PTFE packing
| Softgoods Material | PTFE |
|---|---|
| Port Type | Full |
| End Style | Thread |
| Ball Material | Chrome Plated Low Lead Brass |
| Inlet to Outlet Length | 2.78 in |
| Top to Inlet Center | 2.26 in |
| Type | 1-Piece |
| Pressure Rating | 600 lb WOG |
| Orifice Size | 0.79 in |
| Body Material | Brass |
| Nominal Size | 3/4 in |
| Temperature Rating | 15 to 160 deg F |
| Series | 5060AB |
| Trim Material | Low Lead Brass Stem and PTFE Seat |
| Brand | Red & White Valve |
| Use | Threaded |
| Type | Ball Valve |
| Size | 3/4" |
