Cash Acme 20662-0005
3/4 MXF #30 RELIEF VALVE
SKU
524163

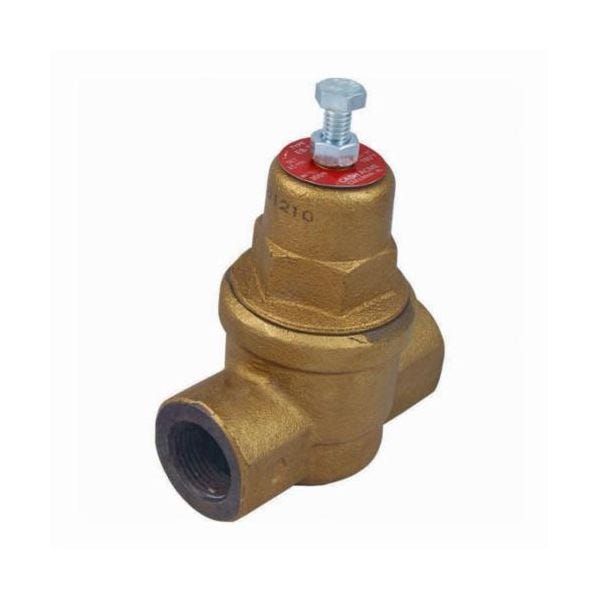

Cash Acme® Pressure Regulating Valve, Compact, Series: EB75, 3/4 in Nominal, FNPT, 5 psi, 180 deg F, Media: Air/Water, 3-49/64 in Inlet to Outlet Length, 4-23/64 in Top to Inlet Center, Iron Body, Reinforced EPDM Diaphragm Softgoods, Domestic
- Inbuilt back-pass check-allows water to flow back through the regulator in cases of thermal expansion caused by hot water heating devices
- Every valve is tested for performance prior to shipping-specify and install with confidence
- Fully pressure-balanced piston-automatically reduces and regulates high inlet pressures from a maximum of 300 psi down to 45 psi at standard factory setting
- 10 to 70 psi outlet pressure range
- 300 psi maximum initial pressure
- Iron spring chamber
- Polysulphone body seat
- Steel adjusting spring
| Domestic/Import | Domestic |
|---|---|
| Temperature Rating | 180 deg F |
| Series | EB75 |
| Inlet to Outlet Length | 3-49/64 in |
| Softgoods Material | Reinforced EPDM Diaphragm |
| Body Material | Iron |
| Media | Air/Water |
| Top to Inlet Center | 4-23/64 in |
| End Style | FNPT |
| Nominal Size | 3/4 in |
| Pressure Rating | 5 psi |
| Type | Compact |
| Brand | Cash Acme |
