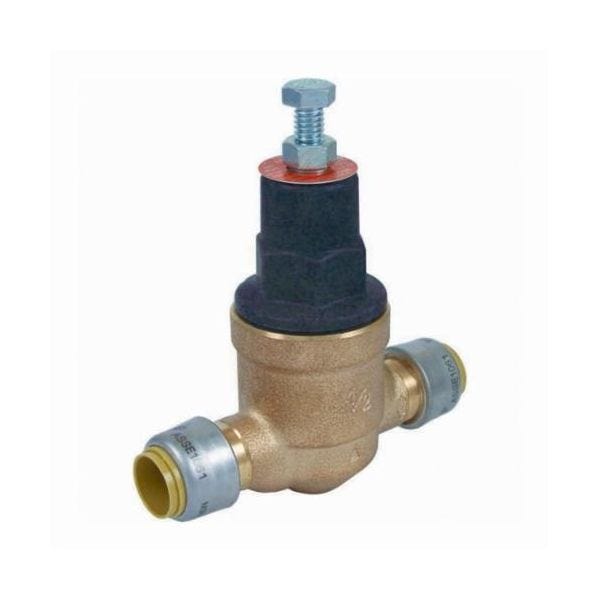

Sharkbite 23808-0045
3/4" EB45 PRV W/SHARKBITE
SKU
565643
Sharkbite® Pressure Regulating Valve, Series: EB45, 3/4 in Nominal, Push-Fit, 45 psi, 180 deg F, Media: Water, 4.48 in Inlet to Outlet Length, 4.37 in Top to Inlet Center, Bronze Body, Brass/Stainless Steel Trim, EPDM O-Ring, Domestic
- Modular cartridge design reduces the number of parts requiring service-quick and easy service/repair
- Instant push-fit connections for increased ease of use-no soldering, glue or tools required to make connection
- Rugged bronze body-superior reliability, improved user safety
- Compact pressure reducing valves-smaller installation footprint and economically priced
- Back-pass check mechanism integral with the cartridge-no add-on or small parts, longer life and more reliable performance
- Every valve is tested for performance prior to shipping-specify and install with confidence
- Lead free
- 200 psi maximum pressure
- 10 to 70 psi outlet pressure range
- Reinforced EPDM diaphragm polyphenylene ether +PS body seat
| Domestic/Import | Domestic |
|---|---|
| Temperature Rating | 180 deg F |
| Trim Material | Brass/Stainless Steel |
| Series | EB45 |
| Inlet to Outlet Length | 4.48 in |
| Softgoods Material | EPDM O-Ring |
| Body Material | Bronze |
| Media | Water |
| Top to Inlet Center | 4.37 in |
| End Style | Push-Fit |
| Nominal Size | 3/4 in |
| Pressure Rating | 45 psi |
| Brand | Sharkbite |
