Cash Acme 23883-0045
LF 3/4" SGL UNION FEMALE PRV
SKU
574574

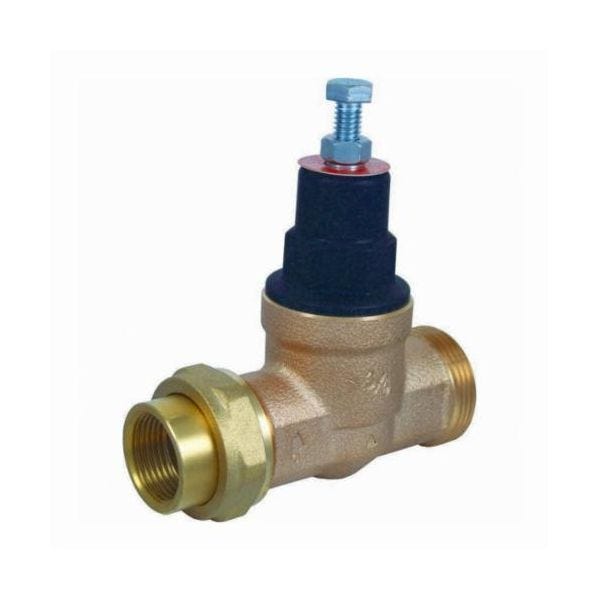

Cash Acme® Pressure Regulating Valve, Single-Union, Series: EB45, 3/4 in Nominal, NPT, 45 psi, 180 deg F, Media: Water, 4.15 in Inlet to Outlet Length, 4.37 in Top to Inlet Center, Bronze Body, Brass/Stainless Steel Trim, EPDM O-Ring, Domestic
- Modular cartridge design reduces the number of parts requiring service-quick and easy service/repair
- Rugged bronze body-superior reliability, improved user safety
- Compact pressure reducing and regulating valves-designed for small and economic considerations
- By-pass mechanism integral with the cartridge-no add-on or small parts, longer life and more reliable performance
- Every valve is tested for performance prior to shipping-specify and install with confidence
- Lead free
- 400 psi maximum inlet pressure
- 10 to 70 psi outlet pressure range
- Reinforced EPDM diaphragm
- Stainless steel strainer screen
| Domestic/Import | Domestic |
|---|---|
| Temperature Rating | 180 deg F |
| Trim Material | Brass/Stainless Steel |
| Series | EB45 |
| Inlet to Outlet Length | 4.15 in |
| Softgoods Material | EPDM O-Ring |
| Body Material | Bronze |
| Media | Water |
| Top to Inlet Center | 4.37 in |
| End Style | NPT |
| Nominal Size | 3/4 in |
| Pressure Rating | 45 psi |
| Type | Single-Union |
| Brand | Cash Acme |
