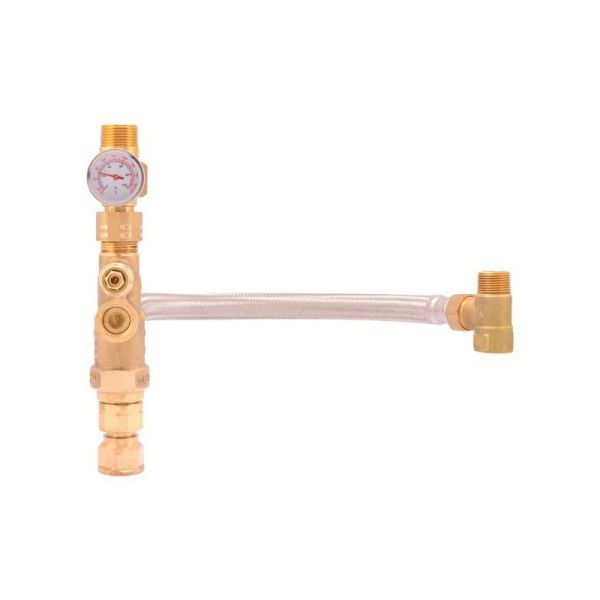

Cash Acme 24644
TANK BOOSTER W/GAUGE,SS HOSE
SKU
593694
Cash Acme® TANK BOOSTER™ Tank Booster, 3/4 in Nominal Size, MNPT x FNPT x NPSH, 150 psi, 90 to 130 deg F, Integral Recirculation Port, Media: Water, Brass Body, EPDM Seal, 3.5 in OAL x 6.7 in OAH
- Precise temperature control: Safer hot water from all outlets
- Allows the water heater to be set at 140 deg F (60 deg C) or higher: Greater effective hot water volume and less chance of Legionella within the cylinder
- Every valve is tested for performance prior to shipping: Specify and install with confidence
- More hot water from the same water heater: Higher storage temperature means a greater effective hot water volume delivered at a safe 120 deg F (49 deg C)
- Robust, low complexity construction: Superior reliability, improved user safety
- Adjustable and lockable mechanism: Minimizes unauthorized tampering with valve setting, Factory set at 120 deg F (49 deg C)
- Listed by IAPMO and ASSE: Inspector friendly, peace of mind
- Integral recirculation port: Allows quick and neat installations in systems with recirculation
- Includes the Tank Booster Temperature Gauge: Allows visual verification of water outlet temperature
- 195 deg F Max hot temperature supply range
- 39 to 80 deg F cold temperature supply range
- Stainless steel springs
- Brass internal cap
- Engineered polymer piston
- Noryl GFN2 guide tube
- 115 to 120 deg F factory setting
- 120 to 180 deg F hot temperature supply
| Nominal Size | 3/4 in |
|---|---|
| Body Material | Brass |
| Port Type | Integral Recirculation |
| Softgoods Material | EPDM Seal |
| Temperature Rating | 90 to 130 deg F |
| Media | Water |
| Domestic/Import | Import |
| Pressure Rating | 150 psi |
| Dimensions | 3.5 in OAL x 6.7 in OAH |
| End Style | MNPT x FNPT x NPSH |
| Brand | Cash Acme |
