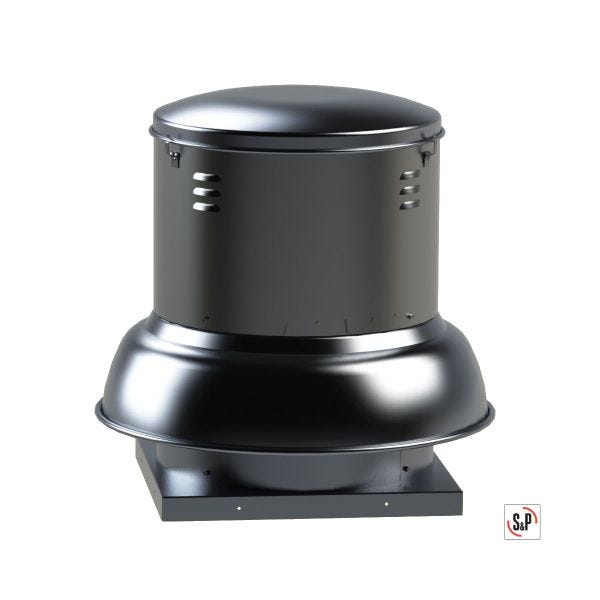

S&P SDB24RH3S
3/4HP 3PH 650RPM 5200CFM
SKU
862708
S&P Downblast Roof Exhaust Fan, Belt Drive Centrifugal, Series: SDB, 6707 cfm, 208/230/460 V, 2.8 A, 3/4 hp, 60 Hz, 13.9 dB, 650 rpm, Spun Aluminum, 49-3/8 in W x 46-5/8 in H
- Exhaust air up to 31563 cfm in high static pressure applications up to 1-3/4 in WG
- Attractive spun aluminum exterior
- Belt drives permit easy performance adjustments when needed
- Curved non-overloading backward inclined wheel for efficiency at higher static pressures
- ODP enclosure
- 3-phase downblast roof exhaust fan
| Speed | 650 rpm |
|---|---|
| Horsepower | 3/4 hp |
| Type | Belt Drive Centrifugal |
| Voltage Rating | 208/230/460 V |
| Flow Rate | 6707 cfm |
| Sound Level | 13.9 dB |
| Series | SDB |
| Frequency Rating | 60 Hz |
| Amperage Rating | 2.8 A |
| Dimensions | 49-3/8 in W x 46-5/8 in H |
| Material | Spun Aluminum |
| Brand | Soler & Palau |
