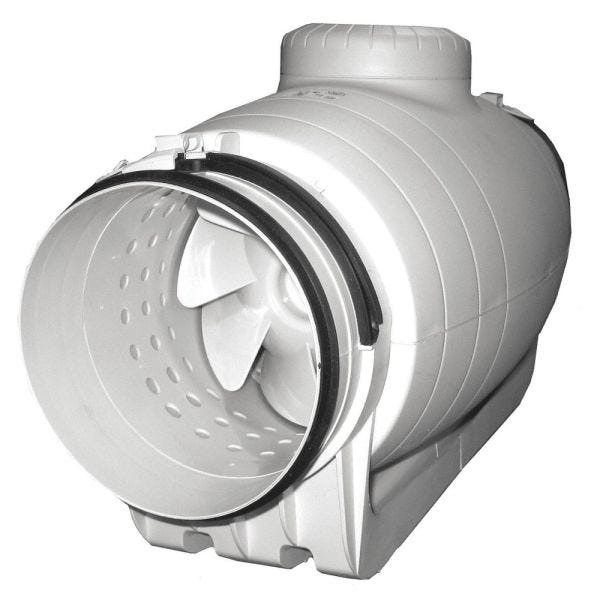

S&P TD-150
"TD-150 150 CFM INLINE FAN 6"""
SKU
720120
S&P Inline Mixed Flow Duct Fan, Series: TD Series, 120 VAC, 65 W Power, 6 in Dia Duct, 2 Speed, 11-5/8 in Length, 140 deg F, 60 Hz Frequency, 1-ph Induction Asynchronous Motor, 2289 rpm Motor, Ball Bearing, Die Cast Aluminum Housing Material, Import
- Exhaust air up to 2,630 cfm with static pressure capabilities to 1 in w.g
- Mixed flow impeller for excellent air flow to pressure performance ratio
- Direct connection, two-speed motor
- Ideal for applications where space is limited
- AMCA seal for air performance
- Model TD-MIXVENT is available in our Quickship program, all sizes are available for next day shipping from stock
- 5 year fan housing and motor warranty
- Class B motor insulation
- IP 44 protection
- Sealed for life, ball bearings
- Suitable for working airstreams up to 140 deg F
- Class l electrical insulation
- Thermal overload protection
| Motor Type | 1-ph Induction Asynchronous |
|---|---|
| Voltage Rating | 120 VAC |
| Power Rating | 65 W |
| Length | 11-5/8 in |
| Housing Material | Die Cast Aluminum |
| Duct Size | 6 in Dia |
| Temperature Rating | 140 deg F |
| Series | TD Series |
| Frequency Rating | 60 Hz |
| Domestic/Import | Import |
| Number of Speeds | 2 |
| Motor Speed | 2289 rpm |
| Bearing Type | Ball |
| Brand | Soler & Palau |
